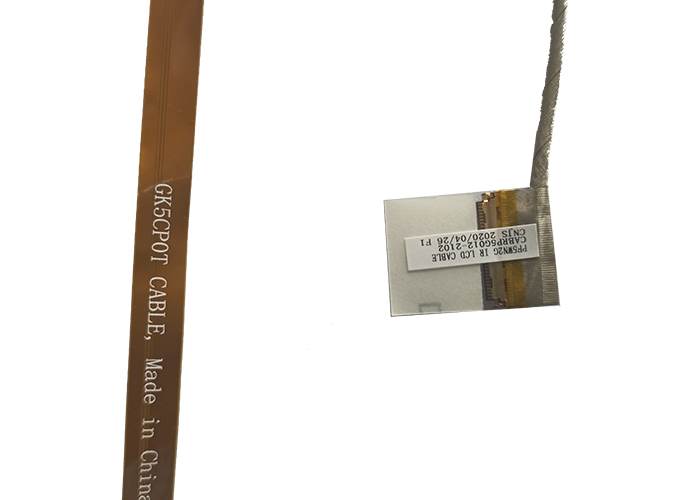

FPC LCD panel cable Mipi line LVDS for Industrial touch screen
Basic information :
| Product Name | FPC LCD panel cable Mipi line LVDS for Industrial touch screen |
| Core No. | 39 |
| Material of sheath | PE |
| Material shape | flat |
| Tensile strength | Standard |
| Length of wire | Customized |
| Material of core | Copper |
| Electric resistance | Standard |
| Rated voltage | Standard |
| MOQ | Sample order/Small quantity can be accepted. |
| Packaging | 100/200/300/500/1000PCS per bag with label,export standard carton. |
FFC / FPC matching pin number can be customized, length can be
customized in the same direction / reverse direction
1. Rated temperature: 80 ℃
2. Withstand voltage: 60 V
3. Rubber compound: PET material
4. Maximum conductor resistance at 20 ℃: 25 Ω / km
5. Tinned copper wire is used as conductor
6. The product has the characteristics of softness, oil resistance,
moisture-proof and mildew proof.
Structure:
Cu (copper foil): E.D. and R.A. copper foil
The copper layer is divided into RA, rolled annealed copper and ED,
electrodeposited. Due to different manufacturing principles, they
have different characteristics. The manufacturing cost of ED copper
is low, but it is fragile. When bending or drilling, the copper
surface is easy to break. However, copper foil is mainly made of
copper FPC.
A (adhesive): acrylic and epoxy thermosetting adhesive
Adhesive layer is composed of acrylic resin and epoxy resin.
PI (Kapton): Polyimide
PI is the abbreviation of polyimide, which is called Kapton in
DuPont, and the thickness unit is 1 / 1000 inch lmil. It has the
characteristics of thin, high temperature resistance, strong drug
resistance and good electrical insulation. At present, FPC
insulation layer has welding requirements.
Characteristic:
The application product volume is reduced, space is saved, the
weight is greatly reduced, the function is increased and the cost
is reduced.
High flexibility, stereo wiring, shape change according to space
constraints.
It can be folded without affecting the function of signal
transmission and anti-static interference.
High and low temperature resistance, fire resistance.
The chemical changes are stable, stable and reliable.
Providing more involved solutions for related products can reduce
assembly time and errors, and improve the service life of related
products.
Effect:
The functions of soft board can be divided into four types: lead
circuit, printed circuit, connector and multi-function integrated
system
Lead circuit: connection between hard printed circuit boards,
three-dimensional circuit, movable circuit, high-density circuit;
Printed circuit: high density thin stereoscopic circuit;
Connector: low cost connection between hard boards;
Multi function integrated system: integration of hard board lead
circuit and connector.
Application:
Flexible circuit board is widely used in various electronic
products and equipment,
such as commercial electronic equipment, automobile dashboard,
printer, hard disk drive,
floppy disk machine, fax machine, vehicle mobile phone, general
telephone, notebook computer,
camera, CD-ROM, hard disk, watch, computer, camera, medical
equipment and other electronic products and equipment.
