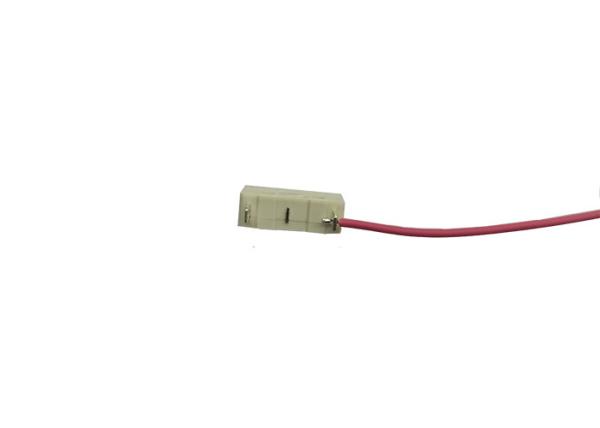

125-250V Microswitch Dustproof Harness for Game machine and household appliances
Product description:Microswitch Dustproof Harness
| Rating | 3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDC |
| Initial contact resistance | ≤25mΩ |
| Initial insulation resistance ( At 500V DC) | ≥100mΩ |
| Dielectric strength | Between non-consecutive terminal | 1000Vrms, 50/60Hz, 1min |
| Between current carrying and non-carry metal parts | 1500Vrms, 50/60Hz, 1min |
| Between ground and each terminal | 1500Vrms, 50/60Hz, 1min |
| Max. Shock resistance | Mechanical durable | 1000m/s2 |
| Malfunction | 300m/s2 |
| Vibration resistance | 10-55Hz, 1.5mm double amplitude |
| Expected life | Mechanical | 20000000 |
| Electrical | 100000 |
| Ambient temperature | -25 to +85 |
| Ambient humidity | 85%RH max |
| Operating frequency | Mechanical | 60 times/min |
| Electrical | 25 times/min |
| Operation speed | 0.01mm-1m/s |
Technical Specifications:
| Operating Speed | 0.1mm-1m/s | Operating frequency | Mechanical | 600times/min |
| Insulation resistance | 100MΩAbove DC500V | Electrical | 30times/min |
| Contact resistance | 25mΩ initial value | Withstand voltage | Non-connection wire | 1000VAC |
| Protection degree | IP40 | Every terminal | 1500VAC |
| Operating temperature | -25~+80ºC | Impact | Durable | 1000m/s² |
| Operating humidity | <85% | Misoperation | 300m/s² |
| Vibration Misoperation | 10-55Hz Amplitude 1.5mm | Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above |
Characteristic & Using :
1. Sate, reliable basic switch ;
2. Nice appearance,tight contiguration.Charactenistic:small contact
dlearance,quick action, high sensitivity and small 3.operating
travel ;
4. Long lite, high reliablity ;
5. A variety of contact terminals ;
6. A varnety of temperature degree ;
7. A variety of levers ;
8. Adopt themosetting plastic or themoplastic ;
9. Widely usedinhome apliane elecroninc equipmentautomatic machine
communication equioncar electron,apparatus and instument,electric
motion tool etc.
About us :
Suzhou Sanyouhe Electronic Technology Co.,Ltd. is located in
Kunshan City,Jiangsu Province, southeast coast of China. It is a
professional wire harness manufacturer integrating product R & D,
production, sales and after-sales service. Its products cover more
than 10 countries and regions all over the country and
internationally.The products are widely used in TV sets, soymilk
machines, microwave ovens, rice cookers, fruit Juicers and other
household appliances, automobiles, electric tools .
The company's main products are customized products. It is a
high-tech enterprise integrating R & D, production and
sales. The company attaches great importance to the construction of
quality management system, and has passed ISO9001 system
certification, some products have passed UL, CQC, CE, VDE
certification, and has RoHS product testing room and product
reliability testing laboratory.
