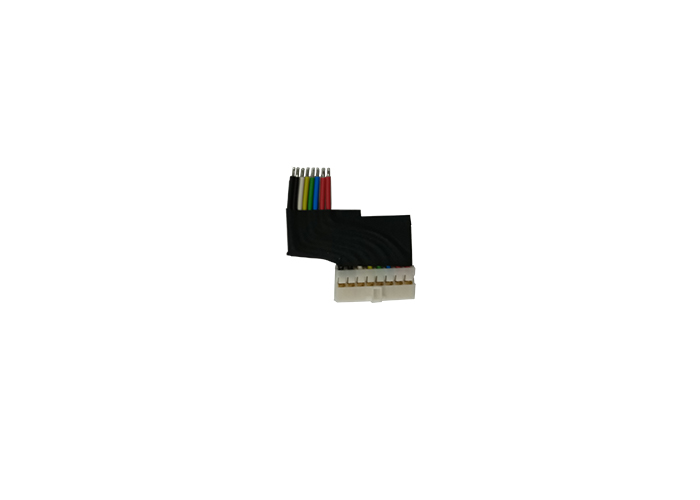

Pitch 1.2 mm flat cable 8 pins for Power supply connection
customized size
Product property:
| Model No. | SYH-CW129 |
| Wire core material | Bare Copper Wire |
| Brand Name | Sanyouhe |
| Place of origin | Jiangsu,China |
| Plated | Customized |
| Wire | Customized |
| Material | Customized |
| Usage | Power supply connection |
| Connector type | SYH cables |
| Body | Brass |
| Length | Customized |
| Certification | RoHS,CE,ISO9001 |
Specification :
Rated temperature:150ºC
Rated voltage:600V
According to:UL Subject758,UL1581,C22.2
Nickel plating or tin/bare copper conductor
FEP Insulation
Passes UL VW-1&CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure
easy stripping and cutting
For general purpose internal wiring of appliance
Optional wire gauge:
| AWG | NO.of Cond | Conductor resistance 20ºC | Conductor Dia | Insulation Thickness | Overall Diameter |
| (mm) | (Ω/KM) | (mm) | (mm) | (mm) |
| Nom. | Min. | Nom. | Tol. |
| 10 | 37/0.42 | 3.54 | 2.94 | 0.35 | 0.33 | 3.6 | ±0.15 |
| 12 | 37/0.374 | 5.64 | 2.62 | 0.35 | 0.33 | 3.32 | ±0.15 |
| 14 | 19/0.361 | 8.96 | 1.85 | 0.35 | 0.33 | 2.6 | ±0.10 |
| 16 | 19/0.287 | 14.6 | 1.5 | 0.35 | 0.33 | 2.2 | ±0.10 |
| 18 | 19/0.235 | 23.2 | 1.18 | 0.35 | 0.33 | 1.9 | ±0.10 |
| 20 | 19/0.19 | 36.7 | 0.95 | 0.35 | 0.33 | 1.65 | ±0.10 |
| 22 | 19/0.15 | 59.4 | 0.76 | 0.35 | 0.33 | 1.45 | ±0.10 |
| 24 | 7/0.2 | 94.2 | 0.61 | 0.35 | 0.33 | 1.3 | ±0.10 |
| 26 | 7/0.16 | 150 | 0.48 | 0.35 | 0.33 | 1.2 | ±0.10 |
| 28 | 1/0.32 | 227 | 0.32 | 0.35 | 0.33 | 1.02 | ±0.10 |
| 30 | 1/0.254 | 361 | 0.254 | 0.35 | 0.33 | 0.96 | ±0.10 |
FAQ :
1.Can you offer me a free sample?
Yes, after price confirmation, you can require for free samples but
the freight should be paid.
2.How long to get the sample?
After you pay the freight and send us confirmed files, the samples
will be ready for delivery in 3-7 days. Then they will be sent to
you via express and arrive in 3~5 days.
3.What kinds of products does Sanyouhe make?
- Specialties, such as railway locomotive cables, power shipboard
cables, solar photovoltaic cables, aerospace wire and cable,
weaponry equipment wire and cable, silicon rubber cable, aluminum
alloy cable, charging pile cable 5G communication base station and
so on;
- Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured)
Power Cable
- PVC Insulated (Flexible ) Wire, PVC Insulated and Sheathed
(Armoured) Power Cable;
- Mineral insulated cable, such as extra high refractory
(fire-resistant 15000C) copper core flexible mineral insulated
cable and so on;
- Control Cable;
4. What kind of certifications do you have?
ISO9001:2015, IATF,UL,SGS
5. Which standards do you comply with when you produce the
electrical wires and cables?
We are able to produce electrical wires and cables based on GB, JB,
IEC,UL/CSA,BS,DIN,EN,ASTM,AS/NZS. Meanwhile, we can design and
manufacture the cables according to the samples and technical
specification you supply.
Supplementary information :
SYH cables are widely used in DVD,VCD,TV,Radio, Tape recorder, CD
player with speakers, Amplifier machine connection and transmission
of Audio and Video signals. Renhotec offers a varity of selections
of SYH cabLes.Besides standard cables, we also offer customized
cable. If you have any need for SYH cables, please do not hesitate
to contact us!
