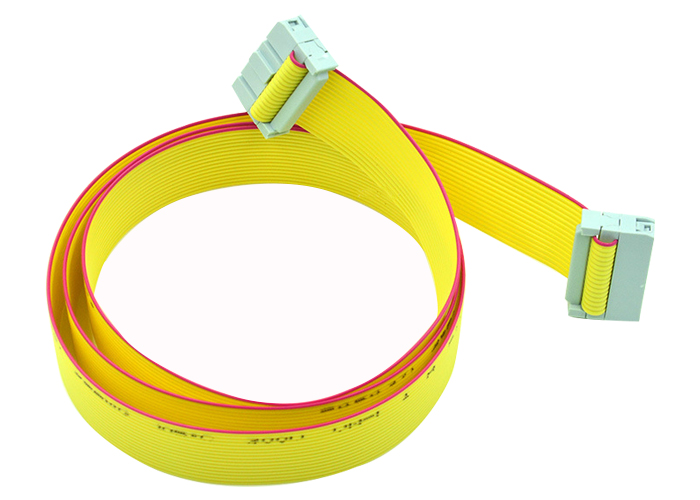

28AWG Custom Wiring Harness 1.27mm Pitch 16pins Yellow FFC Flexible Flat Cable

Product information :

Flexible Flat Cable (FFC) can arbitrarily choose the number and spacing of wires to make the connection more convenient, greatly reduce the volume of electronic products, reduce production costs, improve production efficiency, and is most suitable for moving parts and motherboards, PCB boards Used as a data transmission cable between PCB boards and miniaturized electrical equipment. Common specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other flexible cables with various pitches.

Parameter:

Flexible Flat Cable (FFC) Common models are as follows:

Type A: The two ends are connected and the reinforcing plate is pasted on the insulating adhesive paper;

Type B: The reinforcement board is pasted directly on the insulating adhesive paper;

Type C: The reinforcing plates at both ends are directly pasted on the conductor;

Type D: The reinforcement plates at both ends are directly pasted on the conductor cross;

Type E: one end of the reinforcement board is attached to the insulating adhesive paper, and the other end is directly soldered;

Type F: The reinforcing plates at both ends are directly attached to the insulating adhesive paper, and the internal half is peeled off;

Type G: Solder directly at both ends.

SYH FFC (Flexible Flat Cables) are flat copper conductors of various dimensions laminated with high-quality insulation foils. They guarantee significant competitive advantages over conventional cables in your application.

SYH FFC-cables ensure a fast and easy connection between electric and electronic components in modular and solderable modules. In comparison to traditional round cables and wires the use of flexible film cables gives you a major competitive advantage because of low costs and easy processing.

Suzhou Sanyouhe Electronic Technology Co., Ltd. (hereinafter referred to as Sanyouhe) is located in Jujin Road, Zhangpu Town, Kunshan City, Jiangsu Province. It was established in October 2015 and in March 2018 in the High-tech Industrial Park of Pingjiang County, Hunan Province. The branch company Hunan Sanyouhe was established.

Sanyouhe is a high-quality technology enterprise engaged in wire harness R&D, design, manufacturing, sales and service. Since its establishment, it has been dedicated to the production of wire harnesses, adhering to the business philosophy of "Hard work, integrity, win-win cooperation" to serve customers. Products are widely used in high-end fields such as electronics, electrical, automotive, new energy, medical, industry, communications, and smart products. Relying on the supporting advantages of industry talents and supply chain, Sanyouhe has a number of core production processes and leading technologies through cooperation and technical exchanges with world-renowned parts suppliers. At the same time, Sanyouhe is constantly improving and innovating, and has made breakthroughs in the design and manufacture of wire harnesses, and has successfully passed UL, ISO 9001 IATF16949 and other international standard certifications, and is committed to becoming the most trusted partner of customers.
