1.27P IDC Ribbon Cable Waterproof 10pins Low Frequency Two Piece-Flexible Flat Cables
Product description :
A ribbon cable is a flat, thin cable composed of multiple
small-grade cables placed parallel to each other. With each core
situated side by side, they form a wide-flat cable resembling a
piece of ribbon, hence its name. This type of cable is mostly used
in electronic systems that require multiple data buses to link
internal peripherals, such as disk drives to their respective drive
controllers.
Features:
1. Small size and light weight is the only solution to meet the
requirements of miniaturization and movement;
2. It can be moved, bent and twisted without damaging the wire, and
can meet different shapes and special package sizes;
3. The IDC Ribbon cables has excellent electrical properties,
dielectric properties and heat resistance;
4. The IDC Ribbon cables has higher assembly reliability and
quality.
Parameter:
| Product name | Two Piece-Flexible Flat Cables |
| Sheath material | PA6T+30%Glass Fiber,UL94V-0 |
| Contact material | Phosphor Bronze |
| Current Rating | 0.5A |
| Insulation Voltage | 200V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Operation Temperature | -40℃ to +105℃ |

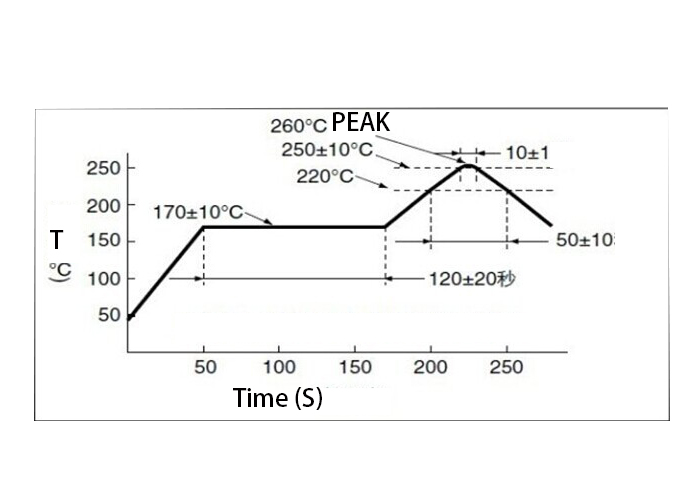

| Processing Temperature | 260℃ for 10 second |
| Interface type | AC/DC |
| Features | Fire resistance / flame retardant |
| Connectors | 1.27-10P |
| Work frequent | Low frequency |
| Shape | Strip |
| Tensile Strength | 100 |
| PIN | 10pins |
| Pitch | 1.27mm |
| Wire gauge | 30AWG or customized |
| Wire length | 150mm or Customized |
| Wire Color | Red edge gray row or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
The quality of the wire harness material directly affects the
quality of the wire harness. The choice of wire harness material is
related to the quality and service life of the wire harness. In the
selection of wire harness products, don't be greedy for cheap,
cheap wire harness products may use poor quality wire harness
materials. How to distinguish the quality of the harness?
Understand the material of the wiring harness. The following is the
material of wire harness selection.
The wiring harness is generally composed of wires, insulating
sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly
brass and bronze (brass is slightly lower in hardness than bronze),
of which brass accounts for a larger proportion. In addition,
different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are
PA6, PA66, ABS, PBT, pp, etc. According to the actual situation,
flame retardant or reinforcing materials can be added to the
plastic to achieve the purpose of reinforcing or flame retardant,
such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the
corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame
retardant, anticorrosion, interference prevention, noise reduction,
and beautification of appearance. Generally, the bandage material
is selected according to the working environment and the size of
the space. There are usually adhesive tapes, corrugated pipes, PVC
pipes, etc. in the choice of packing materials.
