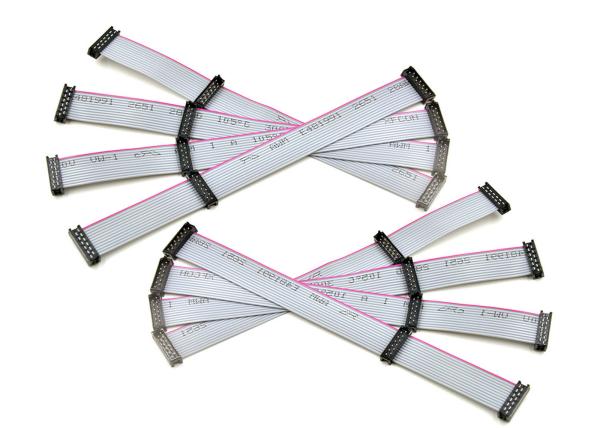

Black 1.27*2.54 IDC Ribbon Cable 12P Environmental Protection Red
Edge Gray Cable
Product introduction
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-FI006 |
| Application | Electronic,Automotive,Electrical,Industry,Home application |
| Connectors | 12pins or Customized |
| Wire | UL2651 28AWG |
| Wire length | 150mm or According to the customers' requirements |
| Wire Color | Grey red or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Black AMP IDC finished gray cable-12P
Gray cable spacing: 1.27MM (Another: 0.635MM 1.0MM 2.0MM 2.54MM)
Gray cable specification: 28AWG (Another: 32AWG 30AWG 26AWG 24AWG)
Copper wire structure material: tinned copper wire after plating
first
Copper conductor: 7/0.12MM {otherwise: 7/0.08MM 7/0.09MM 7/0.1MM
7/0.16MM 7/0.2MM (7 is 7 strands of copper wire)}
Cable color: gray with red border and printing (otherwise black,
yellow and red, need to be customized!)
Packing: conventional 10 strips, packed in bags and boxes. (250ft:
76.5M/roll 500ft: 153M/roll Export: customized according to
requirements)
Conductor diameter 0.12±0.005mm
Conductor elongation 18℅↑
Conductor cross-sectional area 0.36mm2
Conductor pitch 10.7mm↓
Insulator thickness minimum 0.10mm average 0.23mm
Wire diameter thickness 0.9±0.05mm
Insulation elongation 100.00℅
Insulator tensile strength 1.066Kg/m㎡↑
Spark test 3.0KV/0.15SPC↑
Withstand voltage 2KV 10mA/
Conductor resistance ≤237 Ohm/RM↓
Insulation resistance ≥100m ohm/RM↑
Capacitance 40PF/M
Impedance 100 ohm
Time delay 4
Working temperature: -40°C~+105°C
Insulation cover: environmental protection PVC 45P (RoHS) 8058 gray
Testing requirements:
Good appearance, plastic parts must not have injection defects,
etc.
Metal parts must not have defects such as scratches and
deformations
On-off performance meets specified requirements
Widely used in various connectors and connectors such as computers,
instruments, machines, appliances, automobiles, color TVs, air
conditioners, LED displays, DVDs, VCDs, etc.
All crimping methods at both ends of the IDC cable:
(1) In the same direction, the convex points are consistent
The direction du of the two baiIDC crimping heads is the same, and
the direction of the bumps is also the same. The conventional
pressing method of three zhi angles to the red edge is also called
dao one-to-one pressing method. Eighty-five percent of customers
use this pressing method! 6-34P can be crimped with an automatic
pressing machine.
(2) In the same direction, the convex points are opposite
The direction of the two IDC crimping heads is the same, and the
direction of the bumps is opposite. Everyone will ask how the bumps
are different. The two-piece buckle is the direction of the
three-piece buckle! The conventional method is to make three-piece,
so here we are talking about the three-piece directional bump!
(3) In the same direction, the convex points are opposite
The direction of the two IDC crimping heads is the same, and the
direction of the bumps is opposite. The upper one is a three-piece
type, and the lower one is a two-piece type with no reverse buckle!
The three-piece direction bumps are subject! If you need a
two-piece type, pay attention!
(4) Positive and negative, the convex points are consistent
The direction of the two IDC crimping heads is opposite, and the
direction of the bumps is the same. The upper one is a three-piece
type, and the lower one is a two-piece type without a back buckle!
The conventional is to make a three-piece type, so here we are
talking about the three-piece direction bumps!
(5) Positive and negative, convex points are opposite
The directions of the two IDC crimping heads are opposite, and the
directions of the bumps are opposite, which means the opposite. The
upper one is a three-piece type, and the lower one is a two-piece
type without a back buckle! The conventional is to make a
three-piece type, so here we are talking about the three-piece
direction bumps!
(6) One positive and one negative, the convex points are relative
The direction of the two IDC crimping heads is opposite, and the
direction of the bumps is opposite. The upper one is a three-piece
type, and the lower one is a two-piece type without a back buckle!
The conventional is to make a three-piece type, so here we are
talking about the three-piece direction bumps!
The above six crimping methods are all crimping methods at both
ends of the finished IDC cable. These six crimping methods are used
in IDC gray cables with different positioning!
