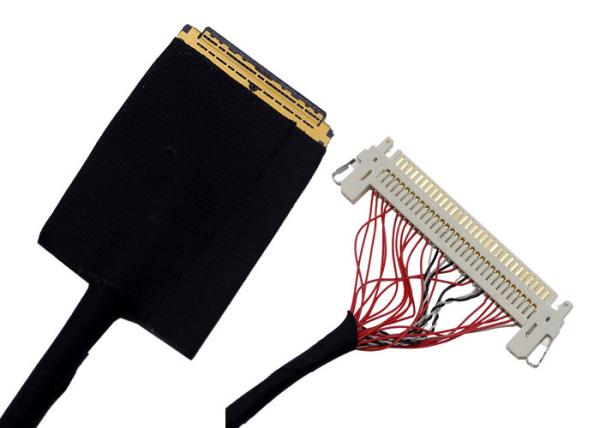

36AWG LVDS Cable 1.0mm Pitch Black HDMI High-Definition LVDS Connection Cable

Product overview :

How to produce a LVDS cable

LVDS Cable means Low Voltage Differential Signaling Cable. It is widely used in many fields .Now, You can see it in LED TV, Note Book etc. Because we usually connect display side and Mother board side together through LVDS Cable. But how to produce a high-quality LVDS cable ?

Parameter:

LVDS Cable is a kind of custom cable. We must make a drawing before production. The drawing must shows connector type , length ,Pin assignment and other required information.

Now,please allow us to introduce how to produce a LVDS cables:

1. we cut wire and crimp terminals on wires by using Fully automtic swivel arm crimping machine .

2. we need to test Terminal Pulling Force every hour by using tester as below:

3. assemble panel and then twist wires

4. assemble mother board side connector

5. test length and then the first test for pin assignment ,open, short etc

6. assemble braid.

7. assemble Acetate Cloth tape and fix it

8. the second test for pin assignment ,open ,short etc as below

9. Appearance inspection as below

10. QC sampling inspection and then packing.

Now ,we finish a LVDS Cable.

Our Advantages:

1. Factory and trade integration,

2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;

6. High Trade Assurance Level

Our Services

1. Design and provide drawings service

2. Free sample service

3. Respond in time

4. OEM, ODM service

5. After sales guarantee service

What we can produce :We can produce series of iso wire harnesses:Our products are as follows:

1. Industrial Wiring Harness

2. Ffc Flexible Flat Cable

3. Idc Ribbon Cable

4. Lvds Cable

5. Custom Wiring Harness

6. Overmolded Cable Assemblies

7. Communication Wires And Cables

8. High Gain Wifi Antenna

9. New Energy Vehicle Wiring Harness

10. Medical Wiring Harness

11. Automotive Wiring Harness

12. Electronic Wiring Harness

13. Industrial Wiring Harness

14. Converter Adapter Cable

15. Waterproof Cable Wire

Suzhou Sanyouhe Electronic Technology Co., Ltd. (hereinafter referred to as Sanyouhe) is located in Jujin Road, Zhangpu Town, Kunshan City, Jiangsu Province. It was established in October 2015 and in March 2018 in the High-tech Industrial Park of Pingjiang County, Hunan Province. The branch company Hunan Sanyouhe was established.

Sanyouhe is a high-quality technology enterprise engaged in wire harness R&D, design, manufacturing, sales and service. Since its establishment, it has been dedicated to the production of wire harnesses, adhering to the business philosophy of "Hard work, integrity, win-win cooperation" to serve customers. Products are widely used in high-end fields such as electronics, electrical, automotive, new energy, medical, industry, communications, and smart products. Relying on the supporting advantages of industry talents and supply chain, Sanyouhe has a number of core production processes and leading technologies through cooperation and technical exchanges with world-renowned parts suppliers. At the same time, Sanyouhe is constantly improving and innovating, and has made breakthroughs in the design and manufacture of wire harnesses, and has successfully passed UL, ISO 9001 IATF16949 and other international standard certifications, and is committed to becoming the most trusted partner of customers.
