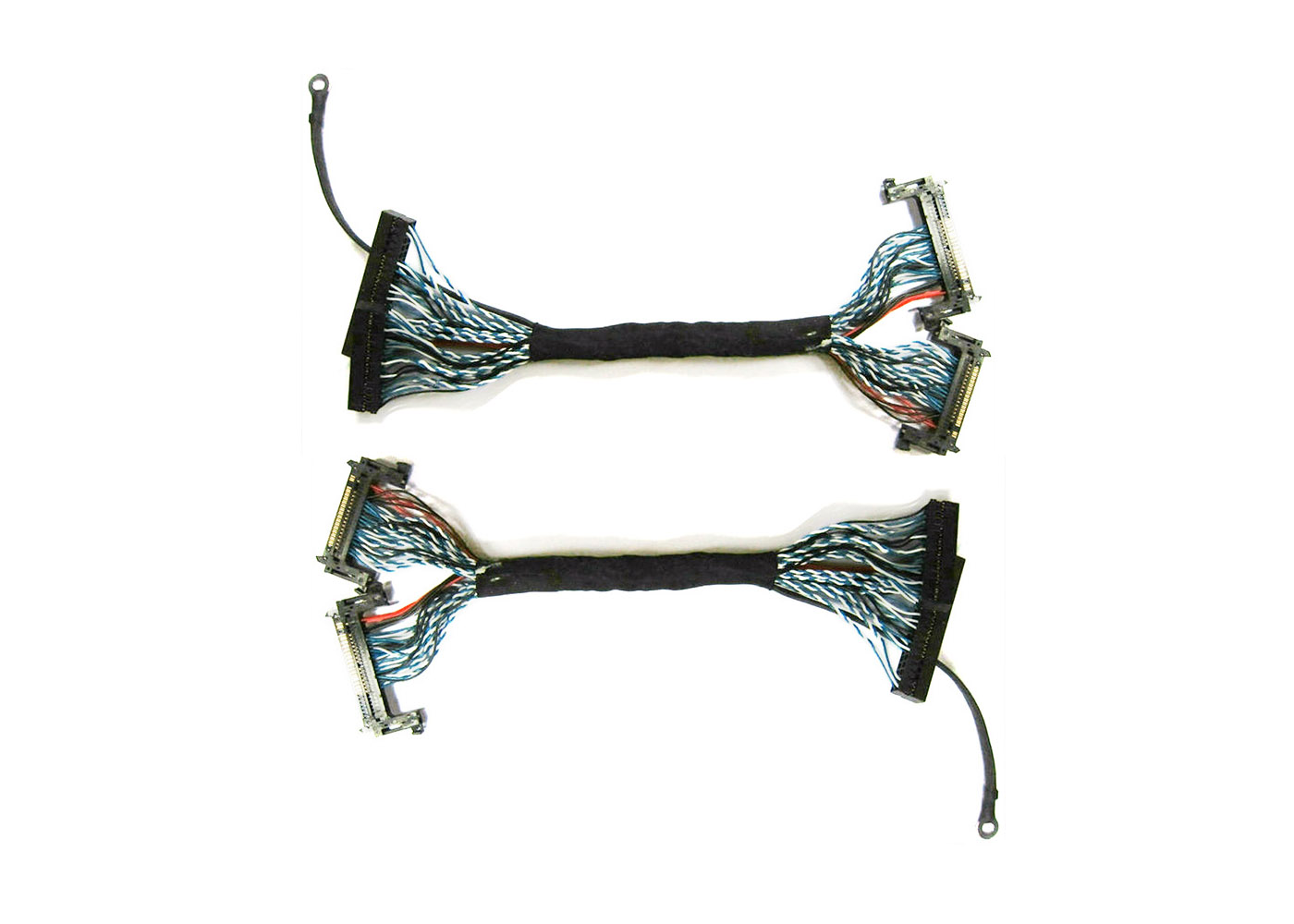

FI-RE51P Screen LVDS Cable FI-RE41P Screen Line LED Screen Cable
LVDS 4K HD Screen Cable
Product introduction
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L008 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire | UL1571 28AWG or Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | FI-RE51P to FI-RE41P 2.0-30P or Customized |
| Length | 300mm or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
lvds connector definition
LVDS connectors, also known as RS-644 bus interface bai du, is a
data transmission and interface technology that appeared only in
the 1990s. LVDS is a low voltage difference dao sub-signal. The
core of this technology is to use a very low voltage swing to
transmit data at a high speed differential, which can achieve
point-to-point or point-to-multipoint connection, with low power
consumption, low bit error rate, low The characteristics of
crosstalk and low radiation, the transmission medium can be a
copper PCB connection, or a balanced cable. LVDS is more and more
widely used in systems that require high signal integrity, low
jitter, and common model performance. At present, the popular LVDS
technical specifications have two standards: one is the
ANSI/TIA/EIA-644 standard of TIA/EIA (Telecommunications Industry
Alliance/Electronic Industry Alliance), and the other is the IEEE
1596.3 standard.
☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES
LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS
CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.
☀ Our Lvds cables can be made in different
connector/length/pitch/pins etc., if you need, we can accept
customized.
☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof
cable,Wire harness and so on.
☀ If you require a special Lvds cable not found here, you can
create your own Lvds cable by calling our sales department.
Conductor Sizes
We can extrude conductors as small as 34 gauge and as large as 12
gauge. These can be combined to create a mixed gauge cable.
Conductor Colors
Our custom wire and cable harness capabilities are extensive, from
1 conductor to cables with more than 50 conductors. Custom colors,
striping and marking are available to meet your wiring harness
design requirements.
Stranding Sizes
Your conductors can be made with stranding as small as 0.002 inches
(0.05mm) which is excellent for hi-flex, supple cables. If you just
need a standard power conductor we can use stranding as large as
0.01 inches (0.25 mm). Stranding can be bare copper, tinned
stranding, tinned conductor or even plated with precious metals
such as silver for increased conductivity.
Conductor Insulation
The first protection in any cable is the conductor’s insulation.
Our wire and cable extrusion capabilities include a wide range of
materials to match your requirements for flexibility, abrasion
resistance and environmental conditions. We use the range from
basic PVC, PE or PP. We also use insulating materials such as
natural rubber, PU, TPE, PTFE (Teflon®) and silicone.
