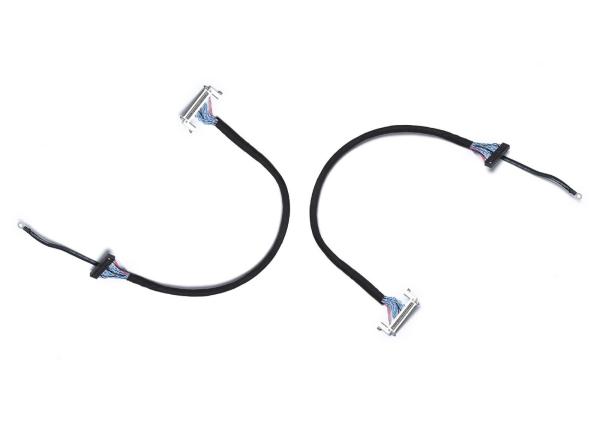

RF51P LVDS Cable HD LCD Screen Cable DuPont 2.0-30P Lvds Lcd Cable
Product introduction
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L007 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire | UL1571 28AWG or Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | RF51P to DuPont 2.0-30P or Customized |
| Length | 300mm or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
Product type characteristics:
Product family = Universal MATE-N-LOK
Product type = connector assembly
Connector type = housing
Stress reduction device = yes
Sealed = No
UL certification = file number E28476
CSA file number = LR 16455
Mechanical connection:
Terminal retention = Without
Mating fixture type = latch
Electrical characteristics:
Operating voltage reference = AC
Operating voltage (VAC) = 600
Main characteristics:
With fixing device = equipped
Assembly Integration Feature = Without
Contact characteristics:
Terminal type = pin or socket
Terminal arrangement = single row
Multiple Contact Types = Without
Shell characteristics:
Connector form = plug
Spacing (mm [in]) = 6.35 [0.250]
Shell material = nylon
Shell color = natural color
Shell fire rating = UL 94V-2
Recognition of fit direction = yes
Anti-reverse insertion method = polarization
Configuration features:
Digits = 2
Rows = 1
Industry Standard:
Agency/Standard = UL, CSA
RoHS/ELV compliant = RoHS compliant, ELV compliant
Lead-free soldering process = independent of lead-free process
RoHS/ELV compliance record = consistent RoHS compliance
VDE certification = yes
UL certification = recognition
CSA Rating = Certified
surroundings:
Operating temperature (°C [°F]) = -55 – +125 [-67 – +257]
Conditions of Use:
Connection terminal = wire/cable
Hot filament rating = no
Use = Appropriate Universal MATE-N-LOK Cap or Header
Operation/application:
Application = wire-to-wire
Packing characteristics:
Packing method = customized according to customer needs
Package quantity = 1
☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES
LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS
CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.
☀ Our Lvds cables can be made in different
connector/length/pitch/pins etc., if you need, we can accept
customized.
☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof
cable,Wire harness and so on.
☀ If you require a special Lvds cable not found here, you can
create your own Lvds cable by calling our sales department.
