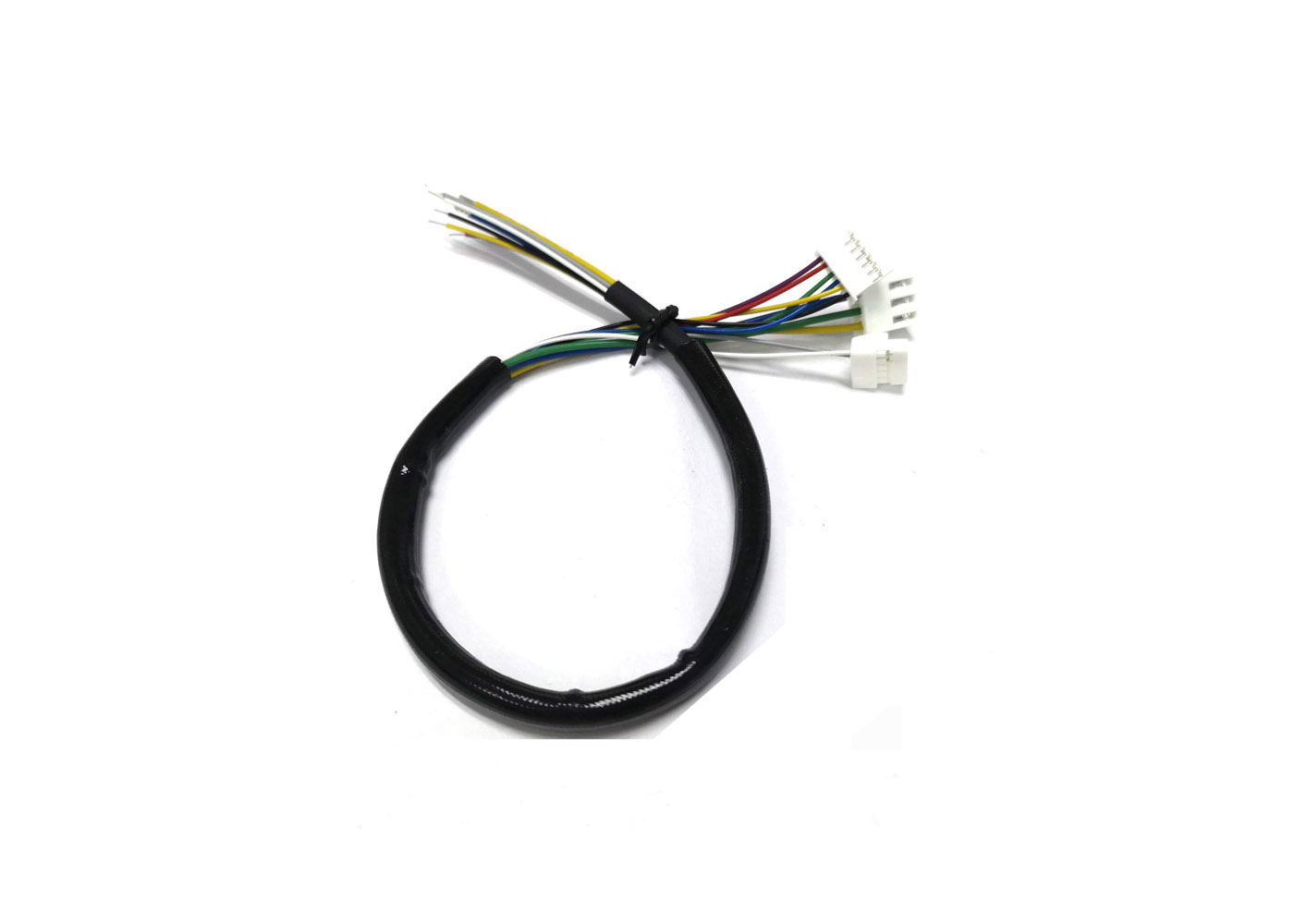

Wire Harness Assembly Speed Wall Breaker Motor Wire H3.96 High
Temperature Resistant Fiber Tube Terminal Wire
The composition of the wiring harness:
The components of the ordinary wiring harness are: wires,
terminals, plastic parts.
The composition of complex wiring harnesses is to be added: tape,
cable ties, sleeves, jackets, labels, etc.
Sheath (HSG)
Sheath (plastic shell), usually made of plastic, inserts the wire
of the crimped terminal into it to ensure the reliability of the
connection. The main materials are PA6, PA66, ABS, PBT, PP, etc.
The jacket (HSG) is divided into There are two types of F (female)
plastic shells and M (male) plastic shells. Most of these shells
have a locking mechanism common to F / M.
Terminal
A shaped hardware component, crimped on the wire to connect
different wires to transmit signals, divided into male terminal,
female terminal, ring terminal and round terminal The material is
mainly brass and bronze (brass is slightly lower in hardness than
bronze), of which brass accounts for a larger proportion.
Wire (low-voltage wire, 60-600V)
From inside to outside
1. Conductor (copper wire)
2. Insulator (PVC, SR-PVC, PP, PE.FOAM-SKIN)
3. Isolation layer (aluminum foil, winding, braiding)
4. Coating (PVC, PU), etc.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-CW136 |
| Application | Electronic |
| Connectors | VH3.96-3P JST-PAPP-06Vor Customized |
| Wire | 26AWG or Customized |
| Wire length | 360mm or According to the customers' requirements |
| Wire Color | White or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Before sales:
1. Industrial terminal wire is divided into forehead and female
head, divided from the appearance, generally the small is the
female head, the large is the male head, except for special.
2. If you can't find the terminal wires and products you need in
this shop, you can consult us, because there are many types of
terminal wires, you may not be able to upload them one by one.
3. If you know the original part number of the purchased connector,
please tell me the relevant model, I will make it according to the
model you gave;
4. If you do n’t know what kind of connector, you can send us the
picture and contact us, we will know which product you want if we
see the picture;
5. If you need welding wire or plastic processing, please provide
the welding wire definition map, we will weld wire or injection
according to your requirements;
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
If you can't find the exact product you need in the pictures,please
don't go away.Just contact me freely or send your sample and
drawing to us.We will reply you as soon as possible.
