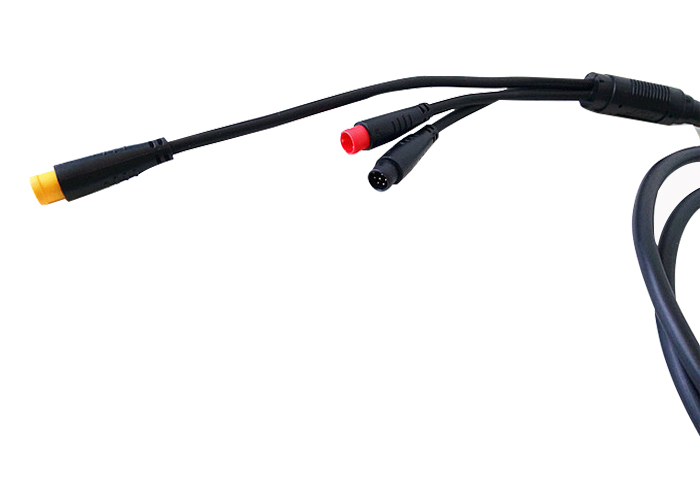

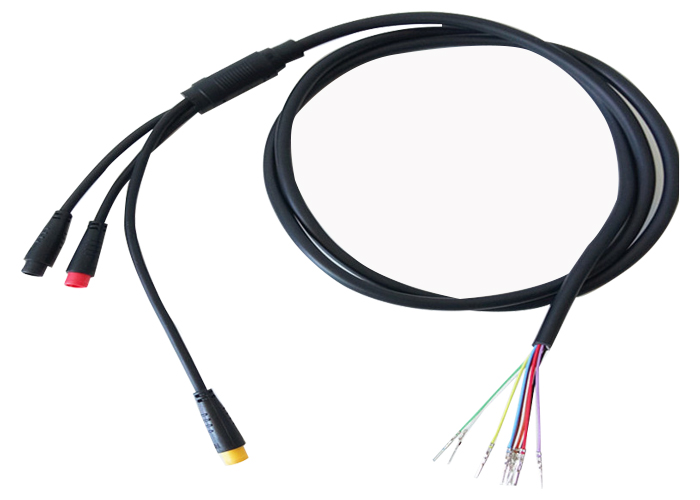

M8 9pins Wire Harness Assembly 1000mm Waterproof 500V Electric Massage Chair Connection Wireless Harness

Product information:

A Wire Harness is often confused with a cable assembly; the main difference between the two is that a cable assembly usually has just two ends while a wire harness has multiple branches/ends running off in many different directions with multiple terminations on each branch.

The typical wire harnesses that SYH supplies include dozens of wires and sometimes hundreds of different components and terminations. Our engineering staff is well versed in the design and construction of wire harnesses and is available to assist in the development of the most efficient harness to meet your demands.

A Wire Harness, also known as a cable harness or wiring assembly, is a grouping of wires, cables, or subassemblies designed to transmit signals or electrical power. A basic Wire Harness may include as few as three discreet components, while the more classic harnesses include many more wires and other passive, and potentially active, components.

Parameter:

Wire Harness Assembly Process

These processes include but are not limited to the following:

• Installing the wires and/or subassemblies on the assembly board.
• Routing wires and/or subassemblies through any required sleeves.
• Applying wraps, ties, or tapes, particularly on any branch-outs.
• Crimping terminals onto wires, especially if more than one wire goes into one terminal.

It is difficult to automate the processes used in the building of a wire harness. Manual production remains more cost effective than automation, especially with small batch sizes. Pre-production or kitting of a harness can be somewhat automated.

This would impact the following steps:

• Cutting and identifying individual wires (cutting/stripping machine).
• Crimping terminals onto one or both sides of the wire.
• Partial plugging of wires prefitted with terminals into connector housings.
• Soldering of wire ends (solder machine).
• Twisting wires.

Wire Harness Testing

Testing the electrical functionality of a wire or cable harness can be done with the aid of a test board. The test board is pre-programmed with the required electrical characteristics, and the completed harness can be plugged into the test board and tested individually or in multiple numbers.

Suzhou Sanyouhe Electronic Technology Co., Ltd. (hereinafter referred to as Sanyouhe) is located in Jujin Road, Zhangpu Town, Kunshan City, Jiangsu Province. It was established in October 2015 and in March 2018 in the High-tech Industrial Park of Pingjiang County, Hunan Province. The branch company Hunan Sanyouhe was established.

Sanyouhe is a high-quality technology enterprise engaged in wire harness R&D, design, manufacturing, sales and service. Since its establishment, it has been dedicated to the production of wire harnesses, adhering to the business philosophy of "Hard work, integrity, win-win cooperation" to serve customers. Products are widely used in high-end fields such as electronics, electrical, automotive, new energy, medical, industry, communications, and smart products. Relying on the supporting advantages of industry talents and supply chain, Sanyouhe has a number of core production processes and leading technologies through cooperation and technical exchanges with world-renowned parts suppliers. At the same time, Sanyouhe is constantly improving and innovating, and has made breakthroughs in the design and manufacture of wire harnesses, and has successfully passed UL, ISO 9001 IATF16949 and other international standard certifications, and is committed to becoming the most trusted partner of customers.
