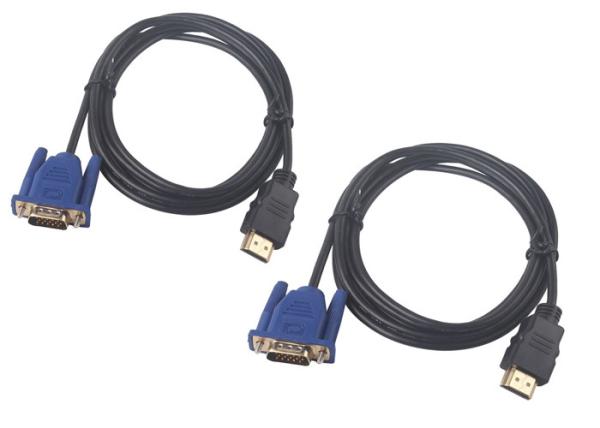

15core Converter Adapter Cable HDMI to VGA 1800mm With Audio Patch Connection Cable
Features:
1. Double magnetic ring design, strengthen anti-interference,
stable and effective data transmission
2. Adopt high-precision specifications of nitrogen-injected
polyethylene insulation material to cover the copper wire to ensure
clearer, more accurate picture quality and more natural sound
quality
3. Purity up to 99.9997% oxygen-free pure copper wire is specially
processed by PCOCC process to provide you with the most excellent
signal transmission performance
4. Silver-plated copper wires provide the best high frequency
response and provide you with the best audiovisual experience
5. Wire twisted pair impedance matching process to minimize
cross-talk of signals and ensure error-free transmission of signals
6. Modular stress relief structure to prevent cable bending damage,
easy to move flexibly, durable
7. Plug anti-skid design, overall color coding, easy to plug and
install
8. Wear-resistant, flexible, high-precision specifications PVC
jacket material
9. 4 layers of shielding layer to completely isolate external
signal interference: 3 layers of 100% covered aluminum foil and
polyester film shielding layer to fully isolate the clutter signal
interference; high proportion of tinned copper mesh shielding layer
to further isolate the clutter signal interference
Parameters:
| Product name | HDMI to VGA wires |
| Maximum outer diameter | 7.5mm |
| Sheath thickness | 0.02mm |
| Sheath material | Nylon mesh |
| Core | 14+1 |
| Interface | HDMI |
| Wire length | 1800mm or customized |
| Data transmission speed | 5(MB/s) |
| Wire Color | Black or customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
The quality of the wire harness material directly affects the
quality of the wire harness. The choice of wire harness material is
related to the quality and service life of the wire harness. In the
selection of wire harness products, don't be greedy for cheap,
cheap wire harness products may use poor quality wire harness
materials. How to distinguish the quality of the harness?
Understand the material of the wiring harness. The following is the
material of wire harness selection.
The wiring harness is generally composed of wires, insulating
sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly
brass and bronze (brass is slightly lower in hardness than bronze),
of which brass accounts for a larger proportion. In addition,
different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are
PA6, PA66, ABS, PBT, pp, etc. According to the actual situation,
flame retardant or reinforcing materials can be added to the
plastic to achieve the purpose of reinforcing or flame retardant,
such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the
corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame
retardant, anticorrosion, interference prevention, noise reduction,
and beautification of appearance. Generally, the bandage material
is selected according to the working environment and the size of
the space. There are usually adhesive tapes, corrugated pipes, PVC
pipes, etc. in the choice of packing materials.
