FPC/FFC Flat Flexible Cable Processing Custom 0.5mm 10p Length
20mm-1000mm
Product introduction
Application
It is widely used in the connection between various printer
printheads and motherboards, signal transmission and board
connection of products such as plotters, scanners, copiers, audio,
LCD appliances, fax machines, various DVD players.
Parameter:
| Pin number | 2-120 |
| Brand Name | SYH |
| Maximum outer diameter of wire | 5.5(mm) |
| Insulation thickness | 0.086 (mm) |
| Sheath material | PE |
| Pitch | 0.5 mm |
| Connectors | Customized |
| Wire | Customized |
| Wire length | 20mm-1000mm or According to the customers' requirements |
| Wire Color | Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Flexible flat flexible cable:
① PITCH (Pitch): 0.5mm 0.8mm 1.0mm 1.25mm 1.27mm 2.0mm 2.54mm
② Conductor specifications: 0.035*0.030, 0.035*0.65, 0.05*0.5,
0.05*0.065, 0.1*0.65, 0.1*0.8;
③ Number of cable screens: 2P-120P;
④ Cable length: 15mm-Nm;
Two types of film are commonly used:

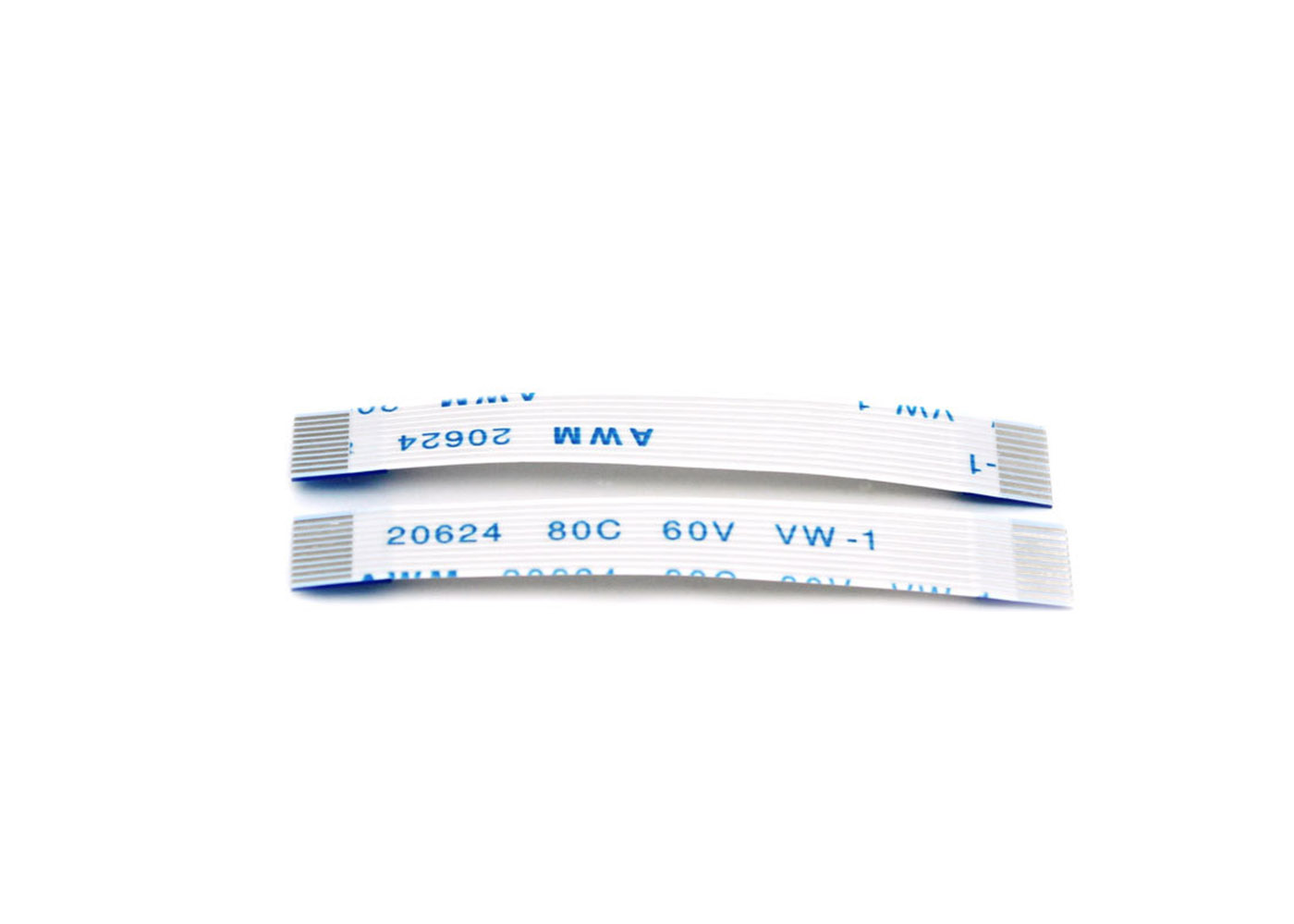

① Rated voltage and temperature 60V 80℃ AWM 20624 80C 60V VW-1
② Rated voltage and temperature 60V 105℃ AWM 20624 105C 60V VW-1
Common models are as follows:
Type A:The two ends are connected and the reinforcing plate is
pasted on the insulating tape;
Type B :The reinforcement board is pasted directly on the
insulating adhesive paper;
Type C :The reinforcing plates at both ends are directly pasted on
the conductor;
Type D :The reinforcing plates at both ends are pasted directly on
the conductor;
Type E:One end of the reinforcement board is attached to the
insulating adhesive paper, and the other end is directly soldered;
Type F :The reinforcing plates at both ends are directly attached
to the insulating adhesive paper, and the internal half is peeled
off;
Type G :Direct soldering at both ends.
FAQ
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after
quotation and order placed then start to drawing and double confirm
with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except
weekend and holidays). If you are very urgent to get the price,
please email us or contact us in other ways so that we can offer
you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the
order.
Usually we can ship within 7-15 days for small quantity,and about
30 days for large quantity.
Q:What is your payment term?
A:T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q:What is the shipping method?
A:It could be shipped by sea,by air or by
express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us
before placing orders.
