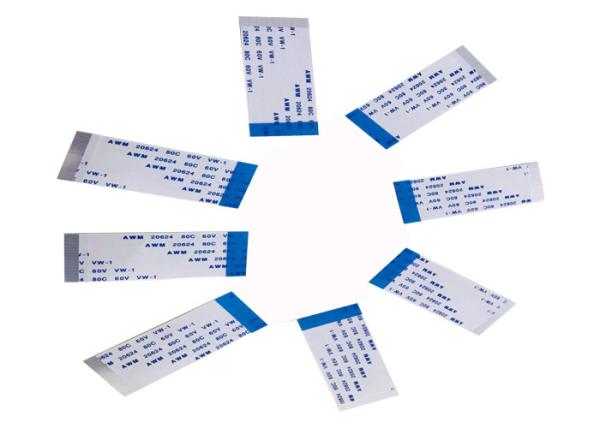

    Electronics 32 AWG 10 Pins 80mm FFC Flexible Flat Cable

    Ask Lasest Price
    Brand Name : Sanyouhe
    Model Number : SYH-F013
    Certification : UL、IATF、ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 50000 PCS/per week
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

    Electronics 32 AWG 10 Pins 80mm FFC Flexible Flat Cable

    32AWG FFC Flexible Flat Cable 10pins 80mm ZIF Flat Cable For Electronics


    Product information:


    Flexible Flat Cable (FFC) can arbitrarily choose the number and spacing of wires to make the connection more convenient, greatly reduce the volume of electronic products, reduce production costs, improve production efficiency, and is most suitable for moving parts and motherboards, PCB boards Used as a data transmission cable between PCB boards and miniaturized electrical equipment. Common specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other flexible cables with various pitches.


    Parameter:


    Product nameFFC flexible flat cable
    ShapeStrip
    Sheath materialPET
    Work frequencyLow frequency
    PIN10pins or customized
    ApplicationMeasuring instruments, medical electronics, automotive electronics
    Interface typeZIF
    Insulation thicknessCustomized
    Core materialTinned copper
    Max outer diameterCustomized
    Wire gauge32 AWG or Customized
    Wire ColorWhite or customized
    Wire lenght80mm or According to the customers' requirements
    CertificatesRoHS,CE,UL,TUV,ISO
    MOQSmall quantity can be accepted
    SampleSamples confirmed first before mass production
    SeviceOEM ODM accepted
    Delivery Time3-15 days upon receipt of payment
    Packaging00/200/300/500pcs per bag , then outside carton
    TestProfessional breakover and pulling force test before goods sent out
    Lead time3-15 days

    FFC technical parameters:

    1. Number of conductors N: the number of copper conductors in the cable;

    2. Pitch P: the distance between the centerlines of two adjacent conductors;

    3. Margin M: the distance between the center line of the outermost conductor and the edge of the cable:

    4. Full pitch TP: the distance between the outermost two conductor centerlines, TP=P*(N-1);

    5. Total width W: the distance between the two edges of the cable, W=P*(N+1);

    6. Total length TL: the distance between the two ends of the cable;

    7. Insert thickness TT: the thickness of the two connecting ends of the cable;


    FAQ:

    Q:Are there any disadvantages to choosing flexible flat cable?

    A:This type of cable does not allow for sideways flexing, so it may only be used in straight-run applications.


    Q:How do I determine which size I need?

    A:Sizes are often specified with the number of conductors and the spacing between them. With this type of cable, the conductors may also be referred to as ways. The spacing is known as pitch. The most common pitch for ribbon cabling is 0.050 inches or 1.27 millimeters.


    Q:What are some common applications for flexible flat cable?

    A:Flexible flat cable is used for data transmission and communications. It is often chosen for computer cable applications, where it is used as internal wiring for hard drives, CD drives, and more. They are also commonly used as internal wiring for other electronics and appliances. They can be found in test and measuring equipment, automated termination equipment, robotics, and pick and place equipment as well.


    Q:Do the colors used in rainbow flexible flat cable have any significance?

    A:The colors of rainbow flexible flat cable are used to make conductor identification easier. The cables follow the standard color code of brown, red, orange, yellow, green, blue, violet, gray, white, and black. After that, colors repeat.
