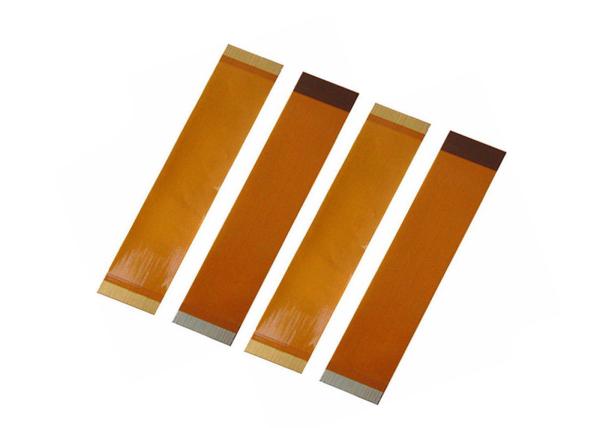

FPC FFC Flexible Flat Cable Ffc Cable 0.5 Mm Flexible Circuit Board Flat Flexible Cables

Product introduction

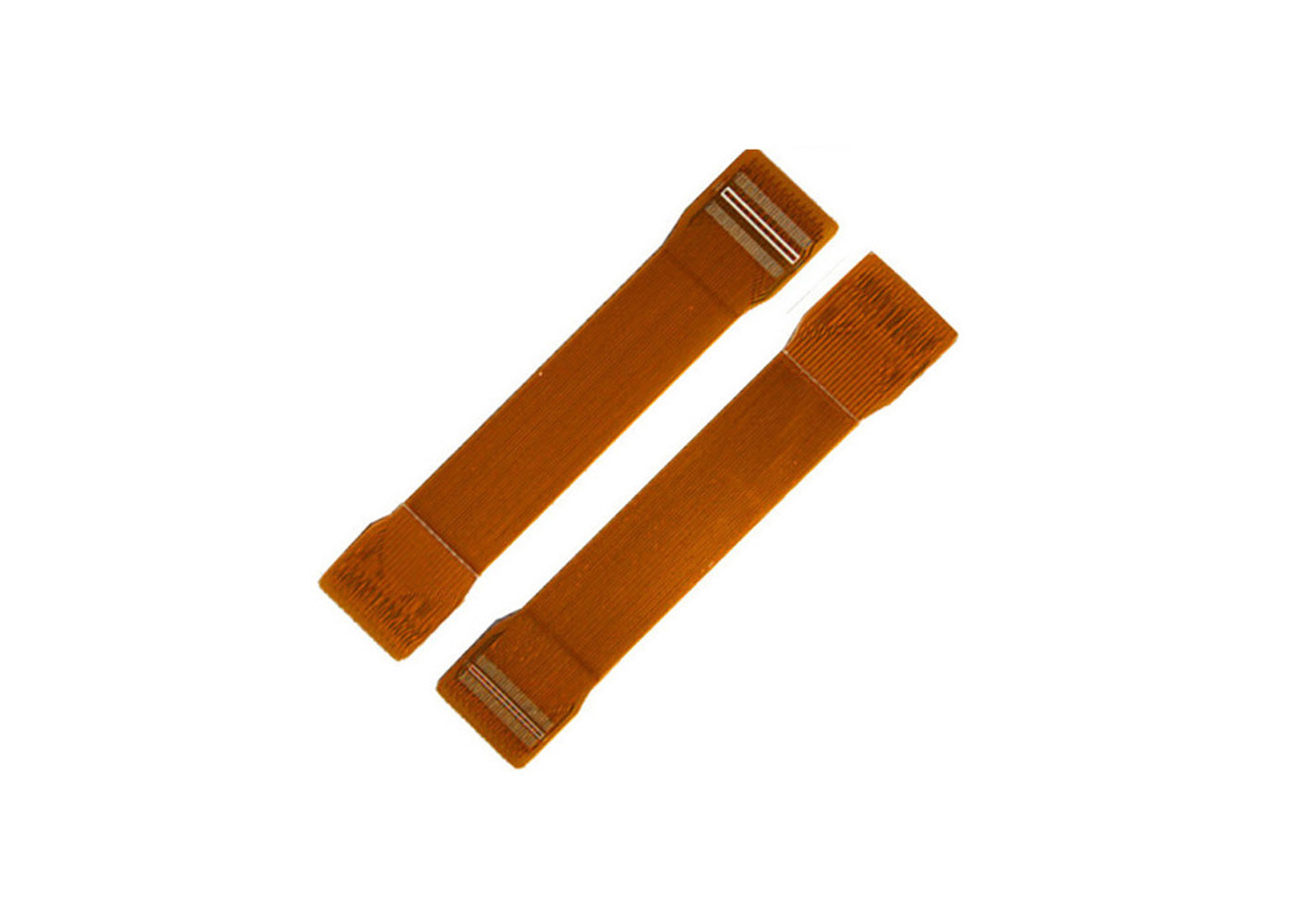

Flexible circuit board, also known as "flexible board", is a printed circuit made of flexible insulating substrate. Flexible circuits provide excellent electrical performance, can meet the design needs of smaller and higher density installations, and also help reduce assembly processes and enhance reliability. Flexible circuit boards are the only solution to meet the miniaturization and mobility requirements of electronic products. It can be freely bent, wound and folded, can withstand millions of times of dynamic bending without damaging the wires, can be arbitrarily arranged according to the space layout requirements, and can be arbitrarily moved and stretched in the three-dimensional space, so as to achieve the integration of component assembly and wire connection The flexible circuit board can greatly reduce the volume and weight of electronic products, and is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability.

Parameter:

Flexible flat flexible cable:

① PITCH (Pitch): 0.5mm 0.8mm 1.0mm 1.25mm 1.27mm 2.0mm 2.54mm

② Conductor specifications: 0.035*0.030, 0.035*0.65, 0.05*0.5, 0.05*0.065, 0.1*0.65, 0.1*0.8;

③ Number of cable screens: 2P-120P;

④ Cable length: 15mm-Nm;

Two types of film are commonly used:

① Rated voltage and temperature 60V 80℃ AWM 20624 80C 60V VW-1

② Rated voltage and temperature 60V 105℃ AWM 20624 105C 60V VW-1

Common models are as follows:
　　

Type A:The two ends are connected and the reinforcing plate is pasted on the insulating tape;

Type B :The reinforcement board is pasted directly on the insulating adhesive paper;

Type C :The reinforcing plates at both ends are directly pasted on the conductor;
Type D :The reinforcing plates at both ends are pasted directly on the conductor;
Type E:One end of the reinforcement board is attached to the insulating adhesive paper, and the other end is directly soldered;
Type F :The reinforcing plates at both ends are directly attached to the insulating adhesive paper, and the internal half is peeled off;
Type G :Direct soldering at both ends.

Suzhou Sanyouhe Electronic Technology Co., Ltd. (hereinafter referred to as Sanyouhe) is located in Jujin Road, Zhangpu Town, Kunshan City, Jiangsu Province. It was established in October 2015 and in March 2018 in the High-tech Industrial Park of Pingjiang County, Hunan Province. The branch company Hunan Sanyouhe was established.

Sanyouhe is a high-quality technology enterprise engaged in wire harness R&D, design, manufacturing, sales and service. Since its establishment, it has been dedicated to the production of wire harnesses, adhering to the business philosophy of "Hard work, integrity, win-win cooperation" to serve customers. Products are widely used in high-end fields such as electronics, electrical, automotive, new energy, medical, industry, communications, and smart products. Relying on the supporting advantages of industry talents and supply chain, Sanyouhe has a number of core production processes and leading technologies through cooperation and technical exchanges with world-renowned parts suppliers. At the same time, Sanyouhe is constantly improving and innovating, and has made breakthroughs in the design and manufacture of wire harnesses, and has successfully passed UL, ISO 9001 IATF16949 and other international standard certifications, and is committed to becoming the most trusted partner of customers.
