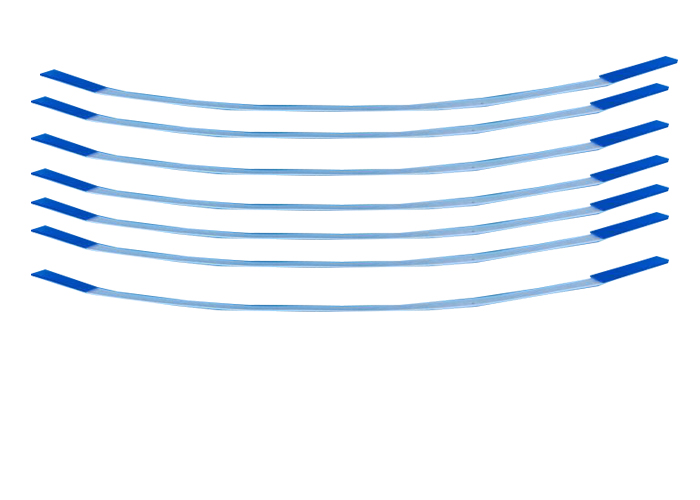

0.5P Same Face FFC Flexible Flat Cable 100mm 6pins VW-1 Same Direction Flat Connection Wires
Product information:
The conductors in flat cables are equally spaced, with the exact
same distance to travel. In round cable, however, the wires twist
and turn inside the cable, so the spacing and the length of travel
varies, and it constantly changes. The result is that flat cables
have significantly better electrical performance than round cables,
including faster signal speeds, less skew, and higher
current-carrying capacity, due to the consistent, straight-line
path for the electrical current in a flat cable.
A final advantage of flat cable designs is that they are easier to
terminate and identify than round cables because of their parallel
conductor layout. This parallel design also means they are easy to
repair, and this equality makes the design strong, as stress and
loads are evenly distributed throughout the cable.SYH offers a
selection of FFC cables with 0.5mm, 0.8mm, 1mm, 1.25mm and 2.54mm
pitch options suitable for soldering or pug-in connections.
Parameter:
| Product name | Same Face FFC Flexible Flat Cable |
| Shape | Strip |
| Interface type | FPC |
| Tensile Strength | 1-999N |
| Rated temperature | 80℃ |
| Fireproof degree | VW-1 |
| Resistance | Standard |
| Pitch | 0.5mm or customized |
| Rated voltage | 60V |
| Work frequency | Low frequency |
| Features | Moisture-proof,Flame retardant |
| PIN | 6 pins or customized |
| Insulation thickness | Customized |
| Wire gauge | 30 AWG or Customized |
| Wire Color | Customized |
| Wire length | 100mm or According to the customers' requirements |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping
methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
Our Advantages for FFC flexible flat cable :
1.Factory and trade integration,
2.Competitive price;
3.Timely delivery;
4.Technical support;
5.Samples for free;
6.High Trade Assurance Level
FAQ about FFC flexible flat cable :
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after
quotation and order placed then start to drawing and double confirm
with client for the design.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:Do you accept to customize products(OEM)?
A:Yes,we custom wire harness for clients,just send us samples and
drawing about the products you need.
Q:Are there any disadvantages to choosing flexible flat cable?
A:This type of cable does not allow for sideways flexing, so it may
only be used in straight-run applications.
Q:How do I determine which size I need?
A:Sizes are often specified with the number of conductors and the
spacing between them. With this type of cable, the conductors may
also be referred to as ways. The spacing is known as pitch. The
most common pitch for ribbon cabling is 0.050 inches or 1.27
millimeters.
