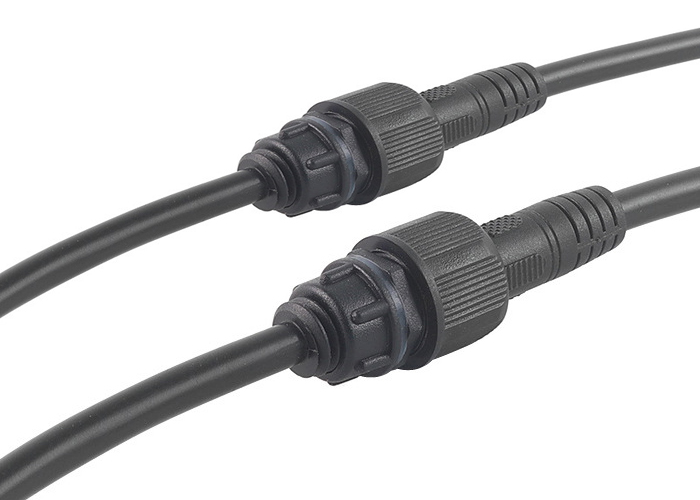

IP65-IP68 Waterproof Cable Wire black 2pins 50A LED Terminal Wire Connector Panel Waterproof Connection Wire Harness
Product information:
The waterproof method of cable is generally divided into two kinds
of longitudinal water blocking and radial diameter water.
Longitudinal water-blocking commonly used are water-blocking yarn,
water-blocking powder and water-blocking tape, their water-blocking
mechanism is that these materials contain a water-swellable
material, when the water is from the cable end or from the sheath
After entering the defect, this material will quickly expand with
water to prevent the water from further spreading along the
longitudinal direction of the cable, thus achieving the purpose of
longitudinal waterproofing of the cable. Radial water blocking is
mainly achieved by extruding HDPE non-metallic sheath or hot
pressing, welding, cold drawing metal sheath.
For XLPE insulated cables above 110kV, metal sheath is mainly used
to make the cables meet the waterproof requirements. The
characteristic of the metal sheath is that it is completely
impermeable, so the cable with the metal sheath has very good
radial water resistance. The main types of metal sheath are:
hot-pressed aluminum sleeve, hot-pressed lead sleeve, welded
wrinkled aluminum sleeve, welded wrinkled steel sleeve, cold drawn
metal sleeve, etc.
Parameter:
| Wire length | 500mm or customized |
| Interface type | AC/DC |
| Shape | Round/Flat |
| Craftsmanship | Stamping/welding/injection |
| Feature | Waterproof |
| Contact material | Pure phosphor copper |
| Connector material | PVC/PBT/PA66/PC+ABS |
| Pin | 2-12pins can be customized |
| Breakdown voltage | ≥1500V |
| Wire material | PVC, rubber, silicone, PE, etc. |
| Work frequency | Low frequency |
| IP code | IP65-IP68 |
| Operating temperature | -40~105°C |
| Rated current | 1-50A |
| Rated voltage | DC 0-24V(AC 110V,500V) |
| Wire gauge | Customized |
| Wire Color | Customized |
| Test | Professional breakover and pulling force test before goods sent out |
| Contact material | Copper plating |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Work frequency | Low frequency |
| Insulation | PVC |
| Connector Type | Original OEM or Replacement |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
