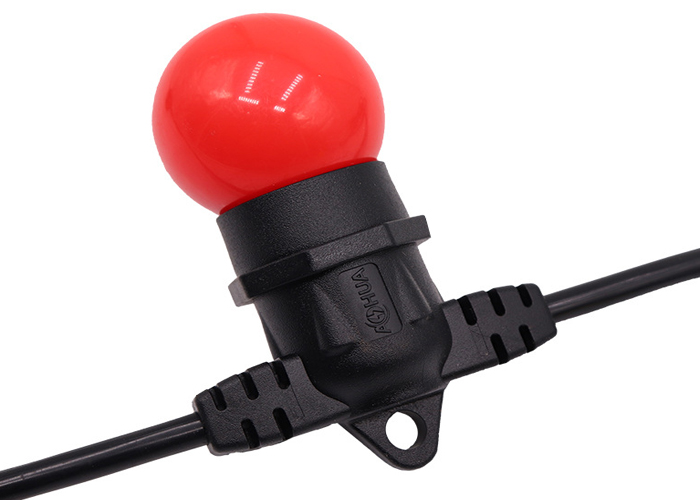

IP44 Waterproof Cable Wire Black 2pins 500mm PVC Outdoor Waterproof
Light String Wires
Product information:
Waterproof cable: The outer skin is made of waterproof rubber, and
the filling of the cable is also made of waterproof rubber. The
jacket of the cable is made of waterproof rubber. It is suitable
for submersible pumps, coal mines, underwater operations, water
scene lights and other water treatment equipment.
The waterproof method of cable is generally divided into two kinds
of longitudinal water blocking and radial diameter water.
Longitudinal water-blocking commonly used are water-blocking yarn,
water-blocking powder and water-blocking tape, their water-blocking
mechanism is that these materials contain a water-swellable
material, when the water is from the cable end or from the sheath
After entering the defect, this material will quickly expand with
water to prevent the water from further spreading along the
longitudinal direction of the cable, thus achieving the purpose of
longitudinal waterproofing of the cable. Radial water blocking is
mainly achieved by extruding HDPE non-metallic sheath or hot
pressing, welding, cold drawing metal sheath.
Parameter:
| Wire length | 500mm or customized |
| Maximum outer diameter | 7mm |
| Interface type | AC/DC |
| Sheath material | PVC |
| Feature | Waterproof |
| IP code | IP44 |
| Nominal cross section | 1.0(mm2) |
| Pin | 2pins can be customized |
| Breakdown voltage | ≥1500V |
| Work frequency | Low frequency |
| Wire Color | Black or Customized |
| Test | Professional breakover and pulling force test before goods sent out |
| Contact material | Copper |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Work frequency | Low frequency |
| Insulation | PVC |
| Connector Type | Original OEM or Replacement |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
