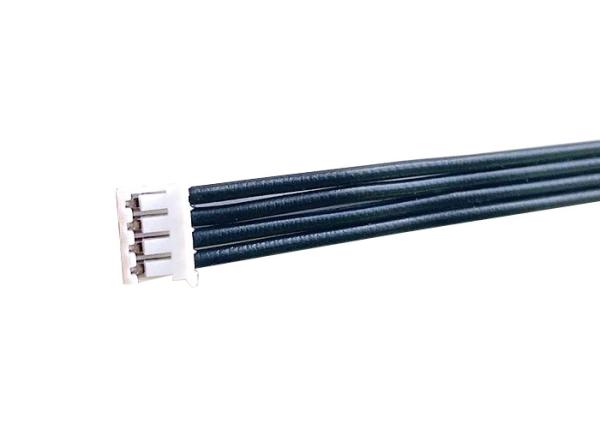

100mm New Energy Vehicle Wiring Harness 4pins 24AWG Black Automobile Battery High Temperature Wire Harness
Product information:
With the increase of automotive electrical equipment, new energy
automobile wiring harnesses, and the number of wires in the wiring
harnesses are also increasing. In order to facilitate
identification and detection of automotive electrical equipment,
low-voltage wires in the wiring harnesses are usually used with
different wire colors.
Parameters:
| Maximum outer diameter | 3.5mm |
| Insulation Material | Silicone Rubber |
| MOQ | Small quantity can be accepted |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Wire gauge | 20AWG |
Color
| Customized |
| Wire length | 100mm or customized |
| Customized | Yes |
| Feature | Waterproof /Flame retardant |
At present, two methods are generally used when selecting wiring:
single-color line and two-color line. When using monochromatic
lines as a basis, you can refer to the monochromatic line colors in
Table 3. The power cord of each power system is monochrome. New
energy vehicle wiring harness service hotline.
About the material :Silicone Rubber
The AGR silicone rubber cable processed with silicone material has
good elasticity. The suitable temperature range is -60 ℃ -200 ℃
Voltage: 300 / 500V Conductor material: The process principle is
similar to rubber, and it is processed through mixing,
high-pressure molding and other processes.
Advantages: heat resistance, cold resistance and weather
resistance, waterproof, good flexibility, easy to install.
Disadvantages: the price is more expensive.
Working temperature: cold resistance -40 degrees; temperature
resistance within 200 degrees.
Conductor Sizes
We can extrude conductors as small as 34 gauge and as large as 12
gauge. These can be combined to create a mixed gauge cable.
Conductor Colors
Our custom wire and cable harness capabilities are extensive, from
1 conductor to cables with more than 50 conductors. Custom colors,
striping and marking are available to meet your wiring harness
design requirements.
Stranding Sizes
Your conductors can be made with stranding as small as 0.002 inches
(0.05mm) which is excellent for hi-flex, supple cables. If you just
need a standard power conductor we can use stranding as large as
0.01 inches (0.25 mm). Stranding can be bare copper, tinned
stranding, tinned conductor or even plated with precious metals
such as silver for increased conductivity.
Conductor Insulation
The first protection in any cable is the conductor’s insulation.
Our wire and cable extrusion capabilities include a wide range of
materials to match your requirements for flexibility, abrasion
resistance and environmental conditions. We use the range from
basic PVC, PE or PP. We also use insulating materials such as
natural rubber, PU, TPE, PTFE (Teflon®) and silicone.
Materials
Polyvinylchloride (PVC)
Polyurethane (PU)
Thermoplastic elastomer (TPE)
Thermoplastic polyester elastomer (TPEE)
Thermoplastic vulcanizate (TPV)
Polytetrafluoroethylene (Teflon®)
Silicone
The hardness or softness of each material can be varied.
Ul® Certified Wire & Cable
There are many standard UL® cable types. UL® standards help
designers choose a cable with known specifications instead of
creating one from scratch. We are certified by UL® to produce many
standard types of wire and cable harnesses.
