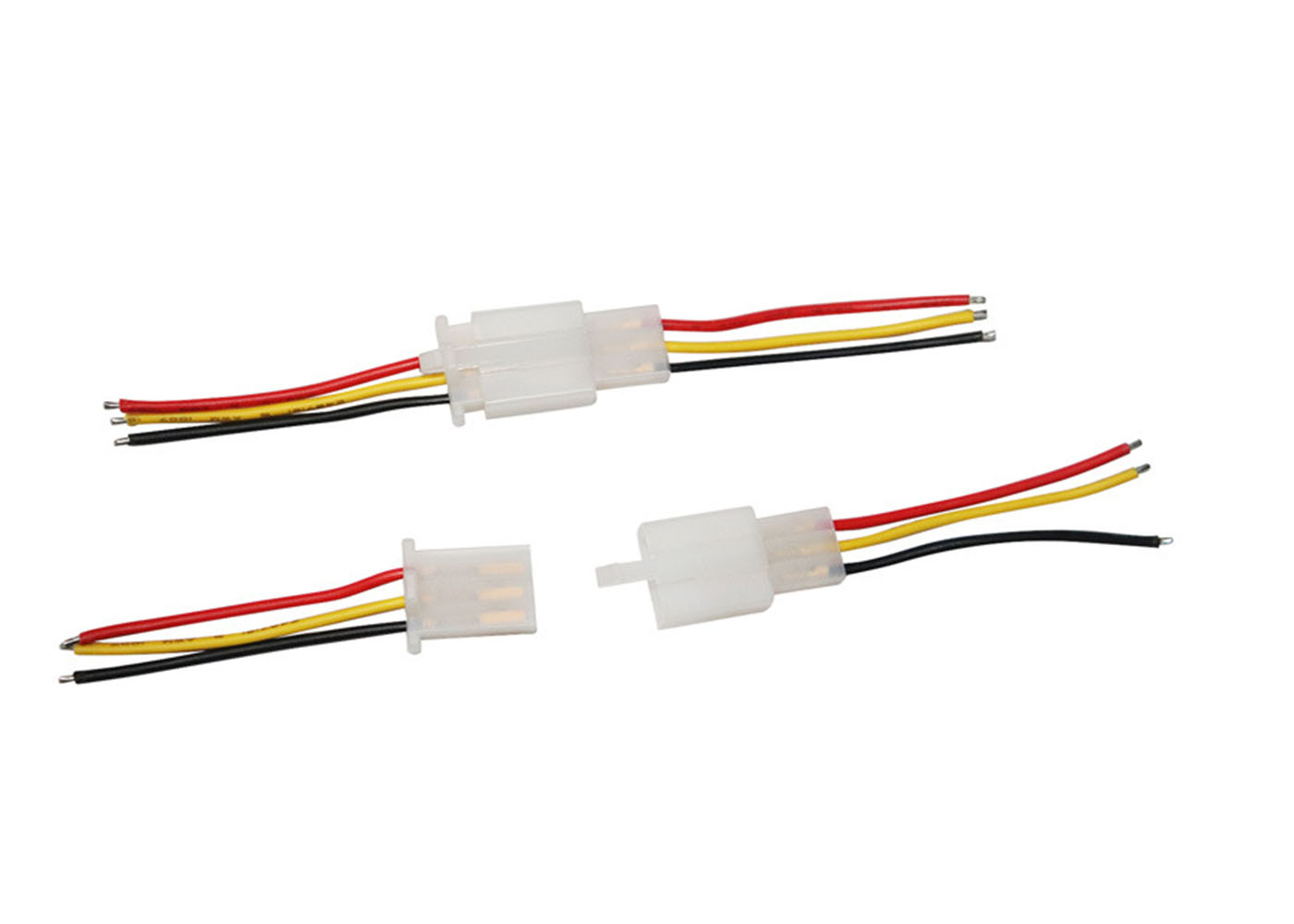

2.8mm Pitch New Energy Vehicle Wiring Harness Male And Female Pair
Wiring Electric Vehicle Car Connection Cable
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-N010 |
| Application | New Energy,Automotive,Electrical,Industry,Home application |
| Connectors | 2.8mm pitch connector or Customized |
| Wire | Customized |
| Wire length | 30mm or According to the customers' requirements |
| Wire Color | black or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
The wiring harness is generally composed of wires, insulating
sheaths, terminal blocks and packing materials.
First, Material selection of terminal
The copper used for terminal materials (copper parts) is mainly
brass and bronze (brass is slightly lower in hardness than bronze),
of which brass accounts for a larger proportion. In addition,
different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are
PA6, PA66, ABS, PBT, pp, etc. According to the actual situation,
flame retardant or reinforcing materials can be added to the
plastic to achieve the purpose of reinforcing or flame retardant,
such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the
corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame
retardant, anticorrosion, interference prevention, noise reduction,
and beautification of appearance. Generally, the bandage material
is selected according to the working environment and the size of
the space. There are usually adhesive tapes, corrugated pipes, PVC
pipes, etc. in the choice of packing materials.
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
FAQ
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
Q: Do you accept to customize products(OEM)?
A: Yes,we custom wire harness for clients,just send us samples and
drawing about the products you need.
Q: Can you meet with UL,ISO etc.?
A: Yes,we have UL,ISO,ROHS,TUV certificates,also can meet with
clients special required about other certificates.
Q: Does SYH offer a warranty for wire harnesses?
A: SYH designs products under the strictest of quality assurance
and quality control guidelines, but components do sometimes break
down prematurely. We want you to be absolutely confident in your
decision to use SYH as your wire harness supplier of choice so we
stand behind our products with a warranty against material defects
or workmanship under normal use and service for a period of one (1)
year from the original date of invoice. Depending on the situation,
We will either repair or replace the product.
