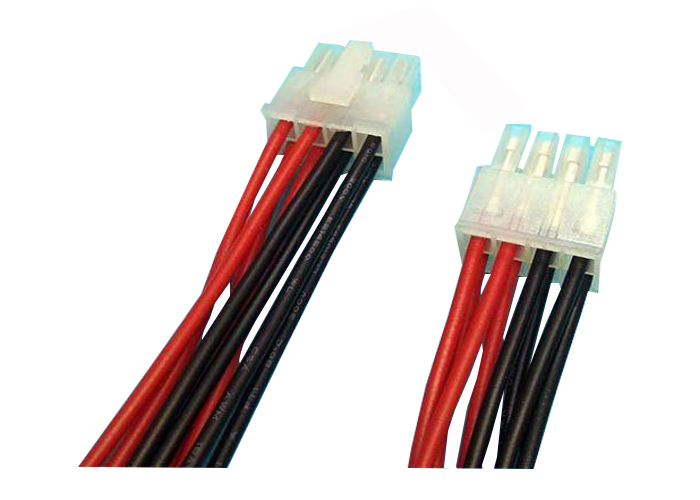

300mm Automotive Wiring Harness Low Frequency 2Color 300V Vehicle Cable
Product introduction
A wire harness can be simple, two wires with basic terminals on the
end, or a complex web of many conductors with a variety of
connectors and terminations. In addition, wire harnesses often need
special shapes, sheathing, mechanical fastening and over molded
connectors, grommets or strain reliefs. Our cable can assist in the
custom wire harness design or quote your existing wire and cable
harness design. We’re ready to help solve your cable assembly and
wire harness needs.
Parameters:
| MOQ | Small quantity can be accepted |
| Pitch | 4.2mm |
| Rated current | 10A |
| Rated voltage | 300V |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Contact type | Wire-to-board |
| Application | Electronic appliances |
| Interface Type | AC/DC |
| Shape | Strip |
| Wire gauge | 16-24AWG or customized |
Color
| Red and black or customized |
| Wire length | 300mm or customized |
| Customized | Yes |
| Feature | Flame retardant,can pass the UL758,VW-A and CSA RT1 vertical
burning test. |
| Insulation material | PVC / TPE / silicone or customized |
| Conductor material | Pure copper tin plating |
Wiring harnesses are used in everything from remote control cars to
jumbo jets. For example, the desktop computer you may be using
currently has a myriad of different harnesses for data and power
transfer, all to let you view a page like this one. Inside your
vehicle are reams of cables, wires, terminals, and connectors that
have to run through the entire vehicle in order to connect all the
different components that allow you to simply drive from A to B.
The harness itself sounds simple, but it can be rather complex when
different connections, terminations, conductor sizes, sheathing,
strain reliefs, and many other considerations have to come into
play depending on the needs of the project. Our engineers design a
complete system around the wires and cables needed to power
electrical systems, transfer high speed data, and send and receive
signals. If you’re ready to discuss your project’s unique
requirements, talk over your options with a knowledgeable
representative now.
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Production Capacity:
We Make Around Five Million Crimps Per Month and We Have Ambitious
Expansion Plans to Make Around Ten Million Crimps Per Month .
Competitivenes…
We Maintain Competitiveness with the Following Steps
- Procurement of Raw Materials from the Most Cost Effective Sources,
- Keeping the Least Inventory.
- Adoption of the Best Process to Increase Productivity to the
Optimum Level.
- Adoption of the Latest Techniques,
- Value Engineering as a Continuous Process
- Best Quality Product with Competitive Price.
- 100% Acceptance with Customers (Zero Defects)
Production equipment :
Fully Automatic Wire Cutting Striping and Crimping Machine
Wire Cutting and Stripping Machine
Multi Core Cable Cutting and De-sheathing Machine
Pneumatic Core Stripper
Wire Cutting Stripping and Twisting Machine
Microprocessor Based Battery Cable Cutting Machine
Pneumatic Cable Outer Jacket Removal Machine
Pneumatic Crimping Machine for Scattered Terminals
Semi Automatic Crimping Machines
Electronic Crimping Presses
Applicators
Toggle Crimping Machines
Wire Stripping and Twisting Machines
Soldering Station
Coupler Assembly Station
Air Compressor ( 3 Hp and 5 Hp)
25 Kva Generator – 1 No
Microprocessor Based Harness Tester
