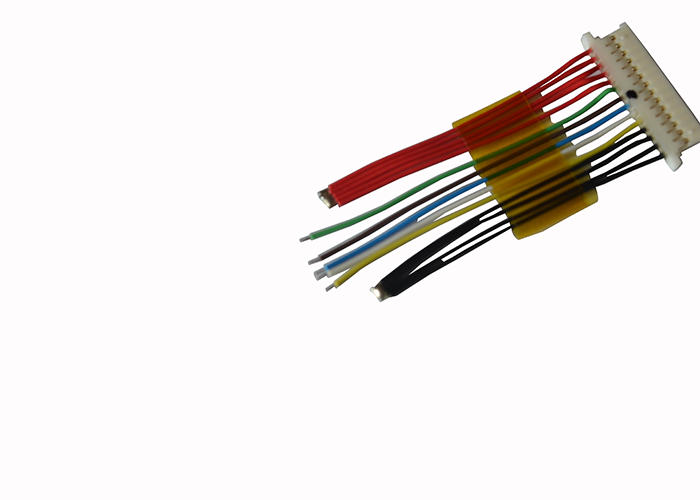

Tinned End Medical Wiring Harness 6Colors 0.5mm Pitch Cooper
Medical Transfer Cable
Product introduction
The quality of the wire harness material directly affects the
quality of the wire harness. The choice of wire harness material is
related to the quality and service life of the wire harness. In the
selection of wire harness products, don't be greedy for cheap,
cheap wire harness products may use poor quality wire harness
materials.
Parameters:
| Pin | 14 pins or customized |
| End | Tinned |
| Tinned length | 2mm or customized |
| Work frequency | Low frequency |
| Feature | Flame retardant |
| MOQ | Small quantity can be accepted |
| Pitch | 0.5mm or customized |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Interface Type | AC/DC |
| Shape | Strip |
| Wire gauge | 16-24AWG or customized |
Color
| Black or customized |
| Wire length | 200mm or customized |
| Customized | Yes |
| Feature | Flame retardant,can pass the UL758,VW-A and CSA RT1 vertical
burning test. |
| Insulation material | PVC / TPE / silicone or customized |
| Conductor material | Pure copper tin plating |
How to distinguish the quality of the harness? Understand the
material of the wiring harness. The following is the material of
wire harness selection.
The wiring harness is generally composed of wires, insulating
sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly
brass and bronze (brass is slightly lower in hardness than bronze),
of which brass accounts for a larger proportion. In addition,
different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are
PA6, PA66, ABS, PBT, pp, etc. According to the actual situation,
flame retardant or reinforcing materials can be added to the
plastic to achieve the purpose of reinforcing or flame retardant,
such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the
corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame
retardant, anticorrosion, interference prevention, noise reduction,
and beautification of appearance. Generally, the bandage material
is selected according to the working environment and the size of
the space. There are usually adhesive tapes, corrugated pipes, PVC
pipes, etc. in the choice of packing materials.
Sanyouhe manufactures custom flat panel display cables and cable
harness assemblies for a wide range of medical devices. Because
medical equipment can mean the difference between life and death,
these devices must be built to the highest standards of quality.
Our products meet or exceed the quality standards of the medical
industry.
We have the manufacturing capability to meet the close tolerances
and tight spacing requirements that medical equipment requires,
with spacing from 2.0 mm down to 0.5 mm pitch. We offer complete
lot traceability for all of our products, parts, and components,
and every cable and assembly we produce is tested for shorts and
continuity prior to shipping.
