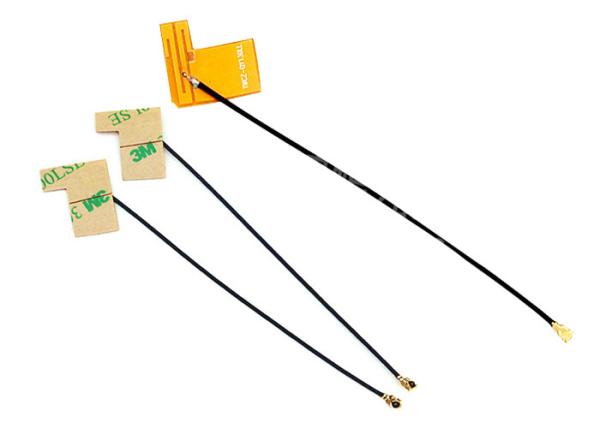

IPX13 High Gain Wifi Antenna 5DBI 2500MHZ 100MM FPC Antenna For Security Monitoring
Product information:
High-gain antennas are focused antennas with narrow radio beams,
allowing for precise targeting of radio signals. This antenna is
used in space missions as well as in flat, open areas where the
geography won'tdisrupt radio waves.
Parameter:
| Gain | 5DB |
| Work Voltage | 2V |
| Connector Type | IPX13 or customized |
| Cable length | 100mm or customized |
| Wire color | Customized |
| Frequency | 2400-2500MHZ or customized |
| Standing wave ratio | ≤1.5DB |
| Output impedance | 50(Ω) |
| Dimension | 18*22mm |
| Operation Temperature | - 40 °C ~ + 85 °C |
| Storage Temperature | - 40 °C ~ +80°C |
| Material | Cooper |
| MOQ | Small quantity can be accepted |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Customized | Yes |
High-gain antennas transmit more power to the receiver, increasing
the strength of the signal it receives. As a result of their
reciprocity, high-gain antennas can also make transmitted signals
100 times stronger by capturing more energy when used in receiving
antenna. As a result of their directivity, directional antennas
send fewer signals from a direction other than the main beam. This
property reduces interference.
Antenna gain refers to the ratio of the power density of the signal
generated by the actual antenna and the ideal radiating element at
the same point in space under the condition of equal input power.
It quantitatively describes the degree to which an antenna radiates
concentrated input power. The gain is obviously closely related to
the antenna pattern. The narrower the main lobe of the pattern, the
smaller the side lobe and the higher the gain. Antenna gain is used
to measure the ability of the antenna to send and receive signals
in a specific direction. It is one of the most important parameters
for selecting a base station antenna.
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
What we can produce :
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping
methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
FAQ
Q:What is wire harness manufacturing?
A:Wire harness manufacturing entails creating a custom set-up of
electrical wires and/or cables based on the task needed by our
client. You can imagine this can run a pretty large gambit of
different applications. As custom wire harness manufacturers, it is
our job to fully understand the client’s needs, examine where the
cable harness will be used, and consider a host other factors that
determine the material types and attributes needed for the wiring
harness to perform under even the harshest of conditions for years
of faithful, continued service. At SYH, we have the tools and
experience to create just about any wiring harness application a
client can think of. We usually produce a small number of
prototypes to ensure our engineers have everything perfect for the
unique application our client is intending before we move on to
larger-scale production.
Q:What are wiring harnesses used for?
A:Wiring harnesses are used in everything from remote control cars
to jumbo jets. For example, the desktop computer you may be using
currently has a myriad of different harnesses for data and power
transfer, all to let you view a page like this one. Inside your
vehicle are reams of cables, wires, terminals, and connectors that
have to run through the entire vehicle in order to connect all the
different components that allow you to simply drive from A to B.
The harness itself sounds simple, but it can be rather complex when
different connections, terminations, conductor sizes, sheathing,
strain reliefs, and many other considerations have to come into
play depending on the needs of the project. Our engineers design a
complete system around the wires and cables needed to power
electrical systems, transfer high speed data, and send and receive
signals. If you’re ready to discuss your project’s unique
requirements, talk over your options with a knowledgeable
representative now.
