GSM Antenna PCB Antenna Board Built-In 900mhz-1800m NB-IOT Sensor
Built-In Antenna Wifi Whip Antenna
Features:
With IPX 1st generation connector, it can also be stripped by tin
plating, and the PCB board with built-in antenna for IoT products.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-H008 |
| Frequency | 900-1800(MHz) |
| Connector | IPEX/UFL |
| V.S.W.R | ≤1.5 |
| Gain | 2-3dbi |
| Antenna length | 32*7.5*0.4mm |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
PCB antenna:
PCB antenna refers to the part on the PCB for wireless reception
and transmission. The antenna is a kind of transducer. When
transmitting, it converts the high-frequency current of the
transmitter into space electromagnetic waves; when receiving, it
converts the electromagnetic waves intercepted from space into
high-frequency current and sends it to the receiver. The antenna
design is an important part of designing a low-power, short-range
wireless transceiver used in radio frequency identification
systems. A good antenna system can achieve the best communication
distance. There are many types of antennas, and different
applications require different antennas. In the low-power,
short-range RFID system, an antenna system with reliable
communication and low cost is needed, and PCB loop antenna is a
commonly used one.

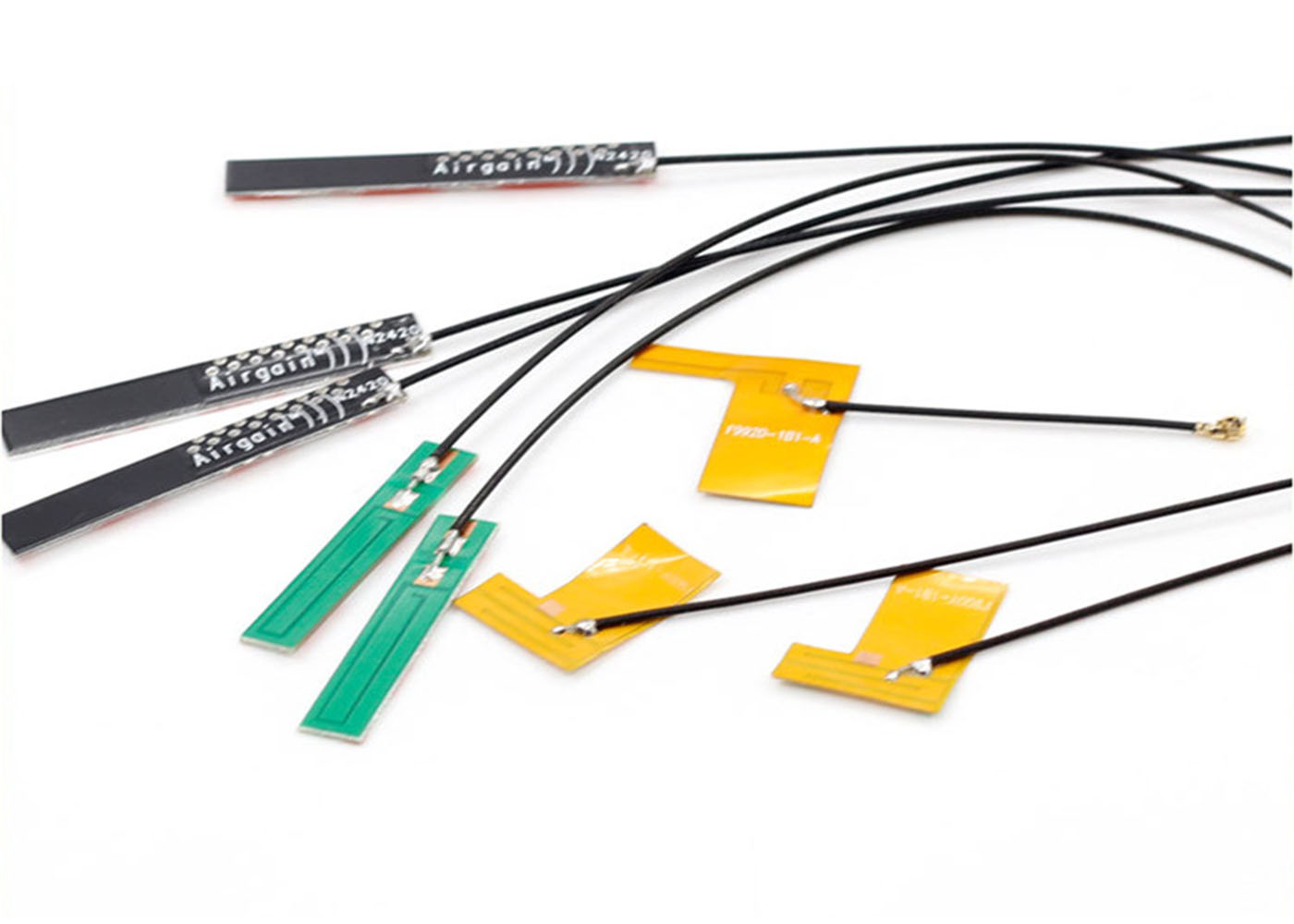

Commonly used antenna types:
(1) External glue stick antenna: good performance, no need to
debug, easy to replace, high gain, suitable for various terminal
equipment.
(2) SMT patch type: The commonly used ceramic antenna has a small
footprint, high integration, and is easy to replace. It is suitable
for products with small space requirements, but this type of
antenna is slightly more expensive and has a smaller bandwidth.
(3) On-board PCB antenna: It is etched by PCB, with low cost, but
with limited performance and good adjustability. It can be used in
large quantities for Bluetooth and WiFi wireless communication
modules.
(4) FPC antenna: connected by feeder, it is free to install and has
high gain. It can usually be pasted on the non-metal casing of the
machine by using adhesive.
Frequency:VHF-UHF Antenna , 315-430-470mhz Antenna , 868-915mhz Antenna , 2G
GSM/CDMA(890-900-1800-1900Mhz) Antenna , 3G
(850-900-1800-1900-2100mhz) Antenna , 2.4G Bluetooth /WIFI network
card (2400-2500mhz) , GPS Antenna(1575.42mhz) ,GPS+BD(1575+1561),
GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz) , NB(824-960mhz)
Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Band
Material: Rubber / plastic , car / sucker , glass antenna , positioning /
navigation / nautical , built-in , antenna cable , antenna
connector , wire / cable , custom antenna .
Applications:Security monitoring, wireless router, mobile phone antenna, IoT
smart, smart home, car mobile antenna, network HD camera,
advertising all-in-one, shared vending machine, TV antenna, radio
antenna, 5G image transmission, drone antenna
