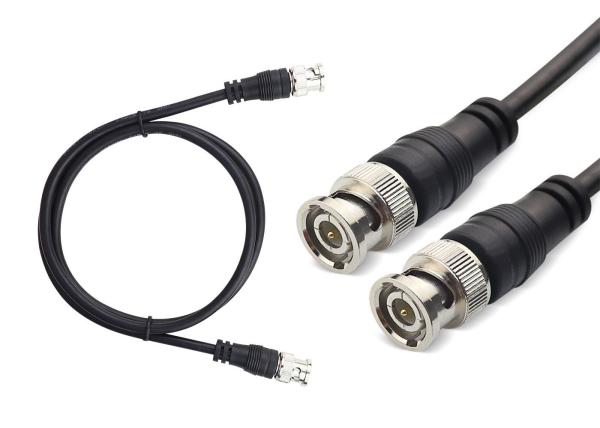

RG58 Coaxial Cable BNC Male To Male Jumper 50 Ohm Video Cable Q9
Monitoring Signal Communication Cable
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-C010 |
| Application | Used in Communication |
| Connectors | BNC Male To Male |
| Wire | RG58 or Customized |
| Wire length | 800mm or According to the customers' requirements |
| Wire Color | Black or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Product features:
RG-58 coaxial cable:
A two-conductor shielded cable similar to TV coaxial cable, which
is mainly used for Ethernet. RG58 is usually called "thin coaxial
cable", and its characteristic impedance is 50 ohms.
The structure of the coaxial cable, from the outside to the inside,
is the sheath, the outer conductor (shield layer), the insulating
medium and the inner conductor. Below we will introduce the role of
each part separately.
The sheath, that is, the outermost layer is an insulating layer,
plays a protective role. Outdoor cables should use black
polyethylene with excellent climate characteristics. Indoor users
should use light-colored polyethylene for aesthetic reasons.
The outer conductor (shield layer), the outer conductor of the
coaxial cable has a dual role. It not only serves as a conductor of
the transmission loop, transmits low levels, but also has a
shielding effect. The outer conductor usually has three structures.
(1) Metal tube. This structure is welded by copper or aluminum tape
longitudinally wrapped or extruded and drawn by seamless copper
tube. This structure has the best shielding performance but poor
flexibility and is often used in trunk cables.
(2) The vertical package of aluminum-plastic composite tape
overlaps. This structure has good shielding effect and low
manufacturing cost, but because the outer conductor is a round tube
with a longitudinal slit, the electromagnetic wave will penetrate
through the slit and leak, so it should be used with caution.
(3) Combination of braided mesh and longitudinal package of
aluminum-plastic composite tape. This is developed from a single
woven mesh structure, which has the characteristics of good
flexibility, light weight and reliable joints. Experiments have
shown that the use of a reasonable composite structure has greatly
improved the shielding performance. Used heavily.
Shipping:
1. FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping
methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
If you can't find the exact product you need in the pictures,please
don't go away.Just contact me freely or send your sample and
drawing to us.We will reply you as soon as possible.
+
