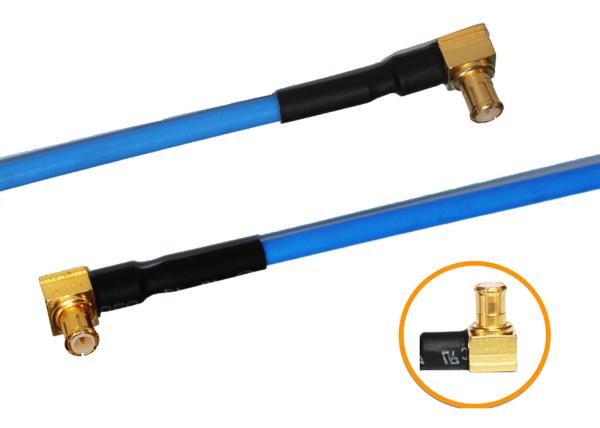

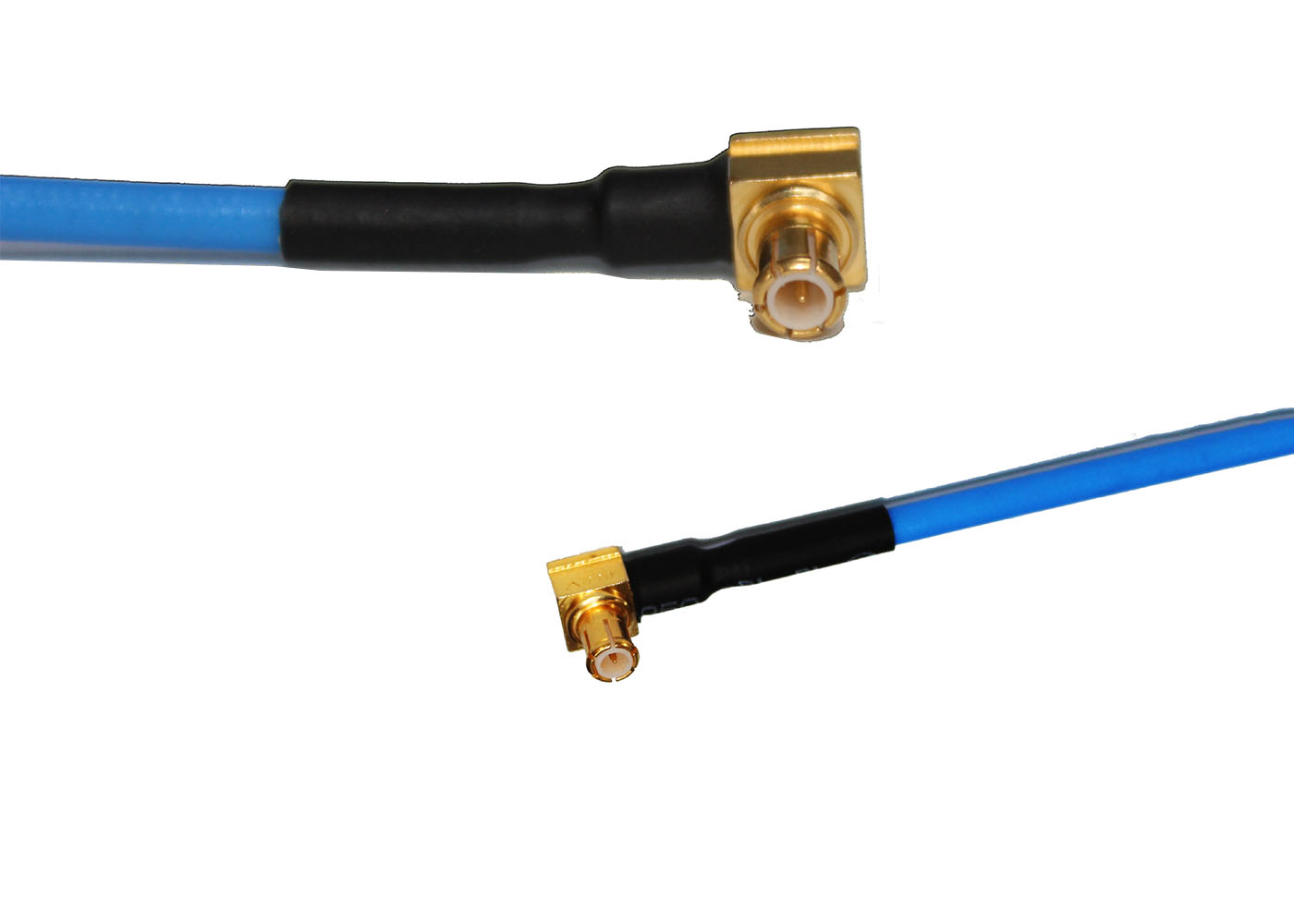

RF Coaxial Cable Assembly MCX-JWB2 RF Adapter Cable RG405 Length
300mm Communication Wires And Cables
Product introduction
Connector 1: MCX-JWB2
Connector 2: MCX-JWB2
Wire: RG405
Cable length: L = 300mm (length can be specified)
Product packaging: 100PCS / article
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-C003 |
| Application | Used in Communication |
| Connectors | MCX-JWB2 To MCX-JWB2 |
| Wire | RG405 |
| Wire length | 300mm or According to the customers' requirements |
| Wire Color | Blue,Black or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Coaxial structure:
From outside to inside, there are 4 parts: sheath, outer conductor
(shield layer), insulating medium and inner conductor.
The sheath, that is, the outermost layer is an insulating layer,
plays a protective role. Outdoor cables should use black
polyethylene with excellent climate characteristics. Indoor users
should use light-colored polyethylene for aesthetic reasons.
The outer conductor (shield layer), the outer conductor of the
coaxial cable has a dual role. It not only serves as a conductor of
the transmission loop, transmits low levels, but also has a
shielding effect. The outer conductor usually has three structures.
(1) Metal tube. This structure is welded by copper or aluminum tape
longitudinally wrapped or extruded and drawn by seamless copper
tube. This structure has the best shielding performance but poor
flexibility and is often used in trunk cables.
(2) The vertical package of aluminum-plastic composite tape
overlaps. This structure has good shielding effect and low
manufacturing cost, but because the outer conductor is a round tube
with a longitudinal slit, the electromagnetic wave will penetrate
through the slit and leak, so it should be used with caution.
(3) Combination of braided mesh and longitudinal package of
aluminum-plastic composite tape. This is developed from a single
woven mesh structure, which has the characteristics of good
flexibility, light weight and reliable joints. Experiments have
shown that the use of a reasonable composite structure has greatly
improved the shielding performance. Used heavily.
FAQ
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after
quotation and order placed then start to drawing and double confirm
with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except
weekend and holidays). If you are very urgent to get the price,
please email us or contact us in other ways so that we can offer
you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:Where can I find custom wire harness manufacturers near me?
A:We strive to make sourcing cable assemblies and wiring harnesses
easy. We own 3 facilities in china , so we stay intimately abreast
of the day-to-day operations of each. We are UL®-approved for wire
harness manufacturing so you can be confident in the exact
requirements of your project being met by our design staff. we
ensure your project is completed on-time and on-budget, using the
best materials and methods available in wire harness manufacturing
today. So no matter where your project takes place, be confident
knowing SYH can supply all the components needed to produce a
top-of-the-line custom cable harness.
Q:What is the wire harness manufacturing process?
A:For any custom cable or wire harness project, our engineers and
design staff first listen to our clients. By intimately
understanding the “what, when, where, and how” behind the
harnesses’ intended application, we can begin the manufacturing
process. Often, we need to understand the electrical needs, as well
as, the space constraints first and foremost and build our systems
within the project’s scope concerning these dimensions. Each
process is a little different for each custom harness and we have
more than 5,000 tools at their disposal to get the job done.
Depending on the level of precision the project calls for, we can
either deploy hand tools, semi-automated machines, or fully
automated machines. Even though we depend on automation to provide
exact design specifications, a lot of work is still done by hand by
our skilled manufacturers due to the multitude of complex steps
involved. Our process engineers deploy time and money savings
techniques like kanban manufacturing and just-in-time ordering to
provide the very best products possible, on-time, and within our
client’s budget.
Q:What is the UL® standard for wire harness manufacturers?
A:United Laboratories (UL) is one of only a select few corporations
that have been approved by the U.S. Occupational Safety and Health
Administration (OSHA) for testing and certifying both safety and
uniform functionality of wiring and cable components. By only using
UL-certified components, we can ensure our products operate the
same way, within known specification ranges, year in and year out.
Rather than having to design a cable from scratch each time, this
allows design staff to focus on other project variables such as
weight strain reduction within the harness, type and size of
conductors, insulation material, etc. If you don’t see that your
wire harness and cable assembly manufacturers are using
UL-certified wires and cables, don’t trust your integral electrical
systems to a system which could fail when you need it the most.
